Nittan Evolution Addressable DIN Rail Mounting SC Isolator (EV-DIN-SCI)

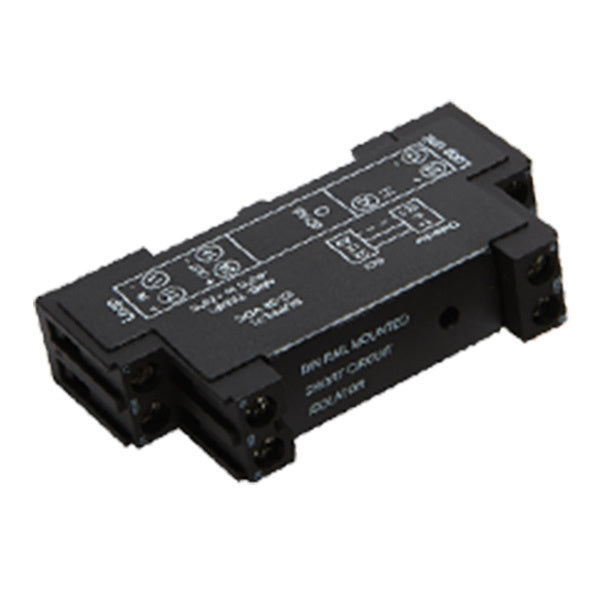

The Nittan EV-DIN-SCI (part no. F03-83620) is a DIN rail mounting short circuit isolator for Nittan Evolution analogue addressable systems. It fits a standard EN 50022 DIN rail, with cable connections via terminals at each end.

It is made for dry, clean areas but can be fitted inside a protective enclosure for harsher environments. The isolator works transparently with no settings needed, resets itself when the fault clears and has a short circuit indicating LED. Nittan notes that +ve and -ve isolator styles cannot be mixed on one system, so check panel compatibility with Nittan technical support.

Key features

• DIN rail mounting (EN 50022)
• Easy termination access at each end
• -ve line short circuit isolator
• Short circuit indicating LED
• Self-resetting when the fault clears
• Low quiescent current

Technical specifications

• Ingress protection: IP20
• Weight: 60 g
• Quiescent current: 60 µA
• Current when short-circuited: 13 mA
• Operating voltage: 22 to 38 V DC
• Operating temperature: -10°C to +55°C
• Relative humidity: 95% RH
• Cable terminals: max. 2.5 mm²
• Material: PC/ABS
• Isolator Vso min / max: 9 / 11 V DC; Vsc min / max: 10 / 12 V DC
• Isolator max. line current: 800 mA; max. switching current: 1500 mA
• Isolator max. leakage current: 13 mA; max. switch resistance: 120 mΩ
• Standard: EN 54-17:2005 / AC:2007
• Manufacturer part number: F03-83620
