Shop all Nittan

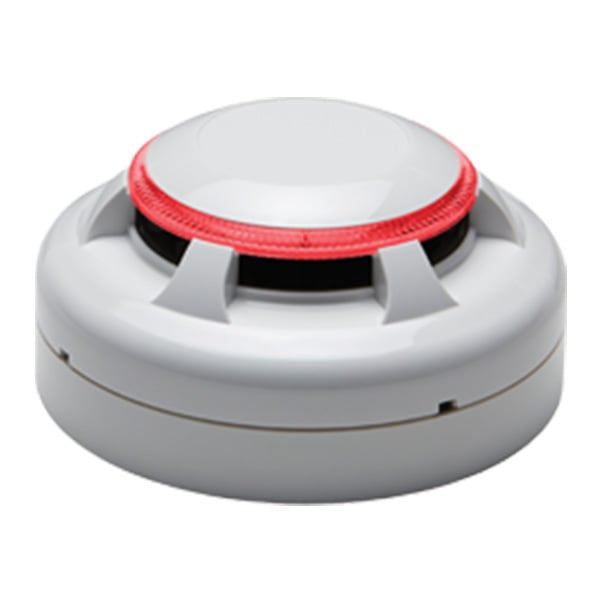

Nittan Evolution Addressable Dual Optical & Heat Multisensor (EV-DPH-CS)
SKU: EV-DPH-CSBrand: Nittan
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Nittan Evolution Addressable Dual Optical & Heat Multisensor (EV-DPH-CS)
£42.25
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Dual optical technology plus heat sensor to reduce false alarms
- Heat class CS
- Evolution FSK protocol
- EEPROM addressed with a programmer
- RIL and base control outputs
Frequently bought together
Nittan
Nittan Evolution Addressable Dual Optical & RoR Heat Multisensor (EV-DPH-A2R)
Sale price£42.25
Out of stock. Lead time 2 to 6 weeks, estimate only
Nittan
Nittan Evolution Addressable Dual Optical Smoke Detector (EV-DP)
Sale price£39.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Nittan
Nittan Evolution Addressable High Output Beacon EN54-23 (EV-HIOP-BCN)
Sale price£56.40
Out of stock. Lead time 2 to 6 weeks, estimate only
Nittan
Nittan Evolution Addressable High Output Beacon Red Flash (EV-HIOP-BCN-R)
Sale price£74.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Nittan
Nittan Evolution Addressable High Output Beacon with -ve Isolator EN54-17/EN54-23 (EV-HIOP-BCN-SCI)
Sale price£81.20
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details
The Nittan EV-DPH-CS (part no. F14-82107) is an analogue addressable dual optical smoke and heat multisensor for Nittan Evolution fire alarm systems. Its heat element is class CS to EN 54-5.
It combines Nittan's dual optical smoke sensing (two LEDs) with a heat sensor, which Nittan says reduces false alarms. It uses the Evolution FSK protocol, is EEPROM addressed with a programmer and has remote indicator (RIL) and base control outputs.
Key features
- Dual optical technology plus heat sensor to reduce false alarms
- Heat class CS
- Evolution FSK protocol
- EEPROM addressed with a programmer
- RIL and base control outputs
Technical specifications
- Sensing method: light scatter (2 x LED) and thermistor (2 x)
- Operating voltage: 20 to 38 V DC (35 V DC system voltage)
- Quiescent current: 200 µA
- Alarm current: 5 mA
- Remote LED indicator current: 2 mA
- Ingress protection: IP42
- Material: ABS
- Dimensions: Ø104 x 33 mm (head); Ø104 x 48 mm with UB-6-EV base
- Mass: 118 g (head); 183 g with UB-6-EV base
- Compatible bases: UB-4-EV, STB-4SE-EV and UB-6-EV
- Standards: EN 54-5 and EN 54-7
- Manufacturer part number: F14-82107
Nittan Evolution Addressable Dual Optical & Heat Multisensor (EV-DPH-CS)
£42.25
