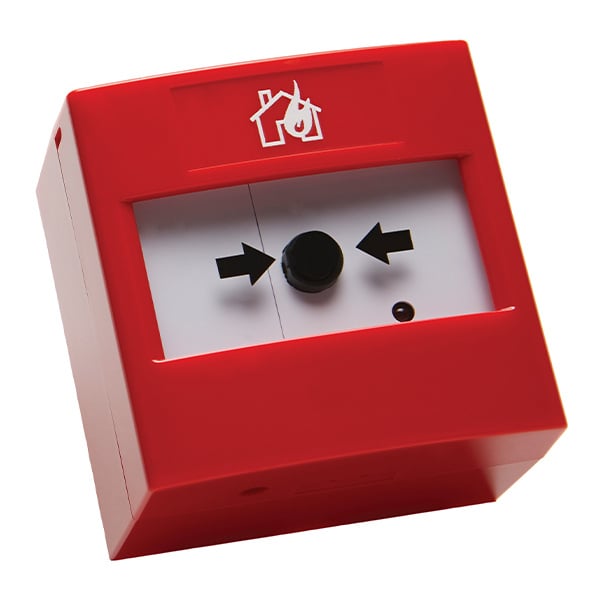

The Nittan EV-MCP2-IP24 is an analogue addressable manual call point for Nittan Evolution fire alarm systems. It is a resettable, surface-mounting call point in an STI "ReSet" IP24 housing and is certified to EN 54-11.
It is DIL-switch addressed and comes with a back box and RF wall plate as standard. It replaces the earlier EV-MCP ReSet.
Key features
- STI "ReSet" IP24 housing, resettable
- DIL switch addressed
- Back box and RF wall plate included
- Red LED alarm indication
- Replaces the EV-MCP ReSet
Technical specifications
- Operating voltage: 20 to 35 V DC
- Quiescent current: 200 µA
- Alarm current: 2.2 mA
- Ingress protection: IP24
- Standard: EN 54-11:2001 + A1:2005
- Manufacturer part number: F16-82201
What's in the box
- EV-MCP2-IP24 manual call point
- Back box
- RF wall plate
