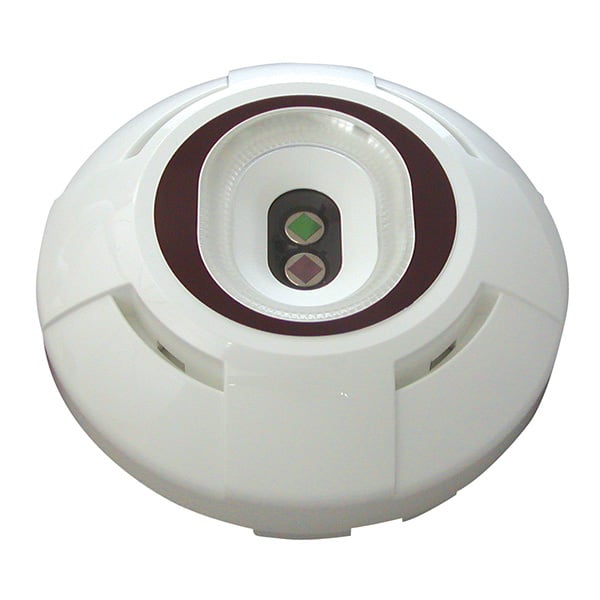

Nittan Evolution Conventional Dual Band IR Flame Detector (EVC-IR)

The Nittan EVC-IR is a conventional dual-band infra-red flame detector from the Evolution Conventional range. It uses dual-wavelength and flicker-frequency sensing to respond to real flaming fires while rejecting other heat sources, which helps reduce false alarms.

It has an internal alarm current limiting resistor (375 ohm), works on 12 to 32 V conventional circuits and can be connected to Nittan addressable systems through the EV-ZMU2 zone monitor. Nittan lists applications such as large, high-ceiling buildings, gymnasiums, atriums, theatres, warehouses and aircraft hangars (not explosion-proof areas).

Key features

• Dual IR sensing method to reduce false alarms
• 12 to 25 m detection distance
• Up to 100° wide viewing angle
• Omniview 360° LED
• Internal alarm current limiting resistor
• Ceiling or wall mounting with an adjustable bracket
• Compatible with the EV-ZMU2 zone monitor
• Low standby current (under 130 µA)

Technical specifications

• Input voltage: 24 V DC (operating range 12 to 32 V)
• Standby current: less than 130 µA
• Alarm current: 50 mA at 24 V
• Sensing distance: 12 to 25 m
• Viewing angle: 100° (±50°)
• Sensing method: dual infra-red wavelength
• Operating temperature: -25°C to +70°C
• Relative humidity: up to 95% RH, non-condensing
• Material: ABS/PC alloy
• Weight: 186 g (with base)
• Standard: EN 54-10:2002 + A1:2005
