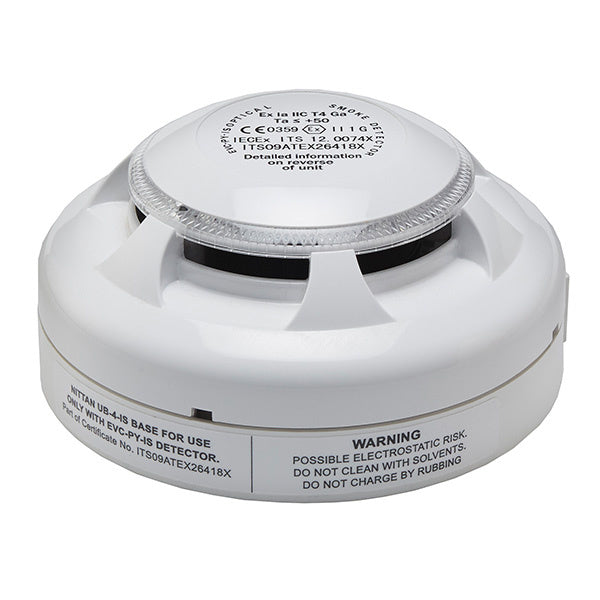

The Nittan EVC-PY-IS (part no. F02-83300) is a conventional intrinsically safe optical smoke detector. It is ATEX approved for use in hazardous areas with potentially explosive gas atmospheres.
It uses the latest generation of Nittan smoke sensing chambers, with enhanced sensitivity to black smoke. It must be installed through a suitable IS barrier and can connect to Nittan addressable systems through the EV-ZMU2 zone monitor.
Key features
- ATEX Class 1 G (gas) T4 approval
- Nittan Y-type smoke chamber with enhanced sensitivity to black smoke
- Compatible with the EV-ZMU2 zone monitor and other protocol zone monitors
- Internal alarm current limiting resistor
- Omniview 360° LED
- Compatible bases: UB-4-IS standard base and EV-SPB-IS splashproof (IP55) base
Technical specifications
- Sensor type: optical
- Alarm voltage: 10 to 28 V DC (limited by IS barrier)
- Quiescent current: 50 µA
- Alarm current: less than 50 mA at 24 V (externally limited by IS barrier)
- Standards: EN 54-7:2018; EN 60079-0:2018 and EN 60079-11:2012 (ATEX)
- Nittan part number: F02-83300
