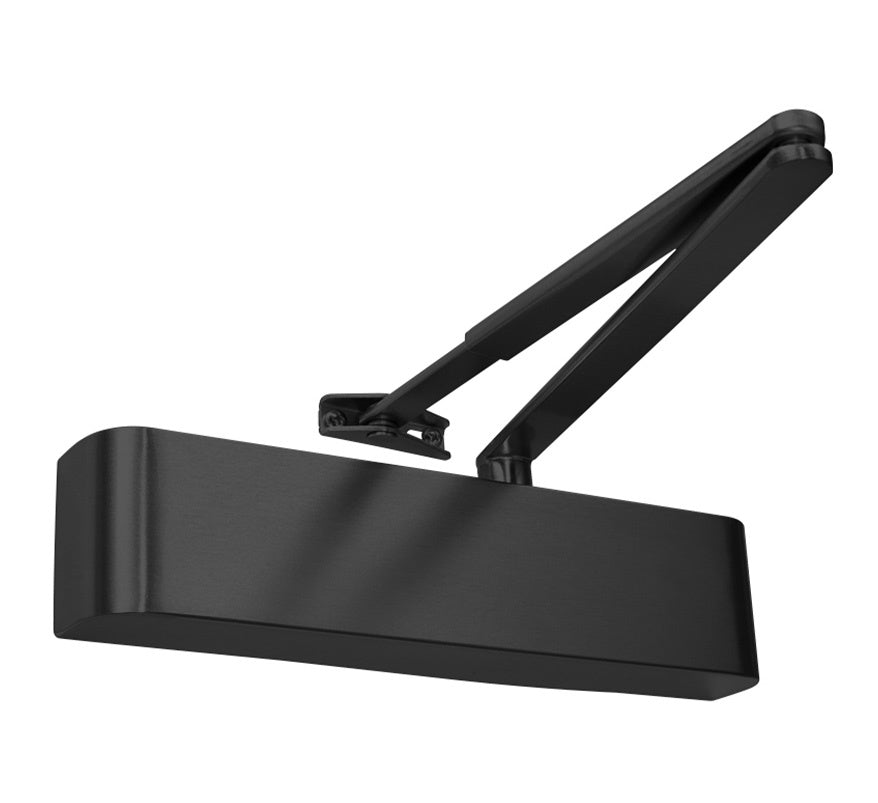

Rutland TS.5204 Variable Power EN2-4 Overhead Door Closer - Black (TS.5204BC.SRFB.RAL9011BK)

The Rutland TS.5204 is an economical, easily adjustable scissor arm overhead door closer in a black (RAL 9011) finish (TS.5204BC.SRFB.RAL9011BK). Power is adjustable by spring from EN2 to EN4, back check is fitted as standard, and its low opening force helps installations comply with BS 8300 and UK Building Regulations (Approved Document M). It suits a wide range of door types, including timber fire doors from FD30 to FD120, and can be fitted in standard, parallel arm or transom positions.

Key features

• Variable power size EN2-EN4, adjustable by spring
• Back check as standard
• Low opening force: assists BS 8300 compliance for Doc M contracts
• Universal application: standard (pull side), parallel arm (push side) or transom fitting
• Certifire approved (CF6018); third-party tested to BS EN 1154; CE and UKCA marked
• Easy-to-follow template fitting instructions

Technical specifications

• Product code: TS.5204BC.SRFB.RAL9011BK
• Power size: EN2-4 (adjustable by spring)
• Maximum door weight: 80 kg
• Door width: 360-1100 mm pull side (Fig. 1); 485-985 mm push side (Fig. 66)
• BS 8300 maximum door width: 920 mm (Fig. 1); 887 mm (Fig. 66)
• Opening angle: up to 180° pull side; 105° parallel arm push side
• Fire rating: 30-120 minutes (FD30 to FD120 timber doors)
• Dimensions (including cover): 258 x 68 x 45 mm (W x H x D)
• Finish: black (RAL 9011)
• Certification: Certifire CF6018, CE 1812, UKCA, BS EN 1154

What's in the box

• Combined unit: closer with back check, flat bar armset, cover and parallel arm (PA) bracket
