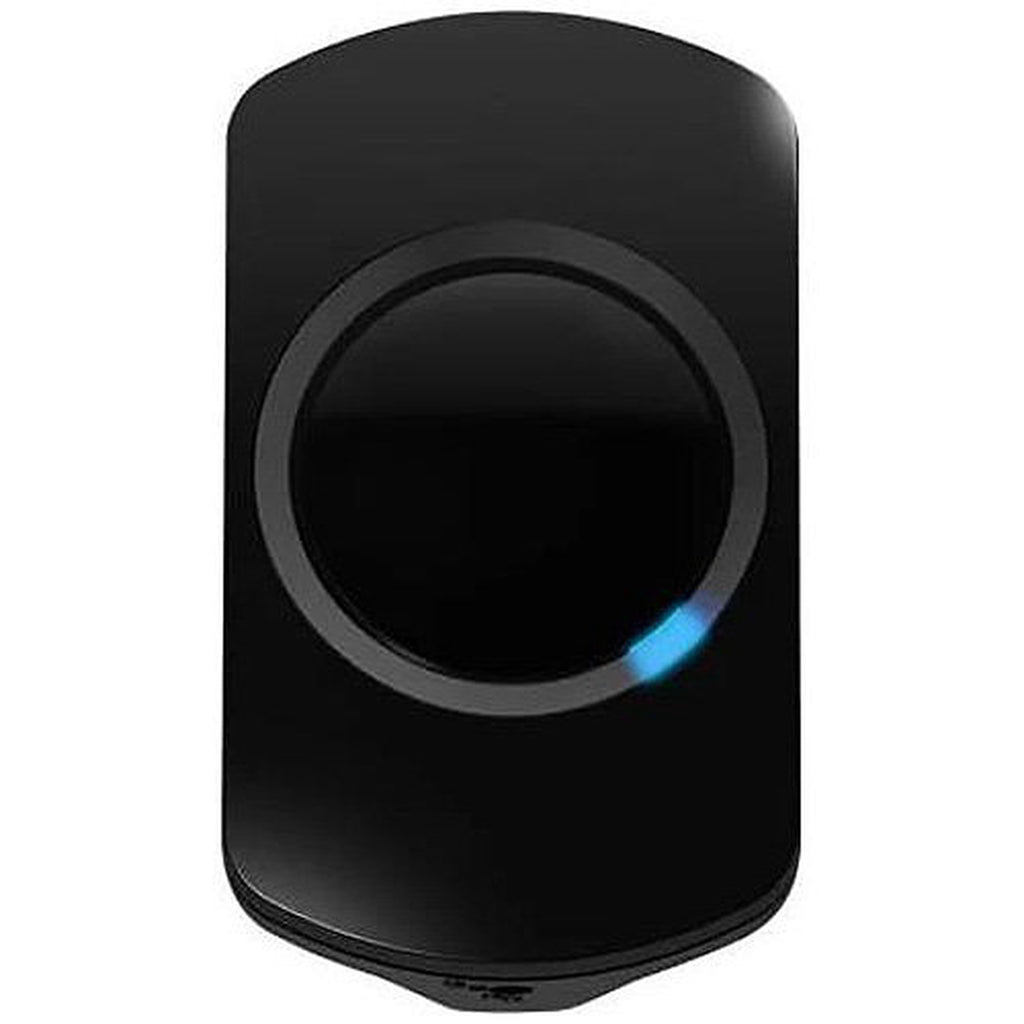

The Texecom Capture D20-W is a Grade 2 wireless dual technology (PIR plus microwave) motion detector for wall mounting, using Texecom's Ricochet mesh wireless technology for use with Texecom wireless and hybrid intruder alarm systems. It combines a quad element pyro with K-band microwave and shares the same low-profile form factor as the wired Capture detectors. This listing is the black version (GDC-0006).
Key features
- 20 m / 85° coverage (manufacturer's leaflet); 16 m / 80° when configured for EN 50131-2-4 compliance
- Quad element pyro plus K-band microwave
- Dual tech, PetWise and CloakWise modes
- EN 50131-2-4 Grade 2
- Ricochet mesh wireless with automatic wireless set-up
- Tri-colour LED
- Lifetime warranty (battery 24 months)
Technical specifications
- Part number: GDC-0006 (black)
- Detection: quad PIR + K-band microwave
- Mounting height: 1.5 m to 3 m
- Maximum current: 38 mA; quiescent current: 22 µA
- Frequency: 868 MHz (868.2–868.4 MHz); max RF power 10 mW; listen-before-talk receiver
- Operating voltage: 3 V; supplied battery capacity 1250 mAh
- Low battery signal: 2.85 V; detector operates for at least 30 days after low battery is signalled
- Operating temperature: -10°C to +55°C; humidity 0–95% non-condensing
- Dimensions: 65 mm wide x 112 mm high x 43 mm deep
- Weight (with fascia, insert and battery): 133 g
