Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (Red) (ZRPB/R)
SKU: ZRPB/RBrand: Zeta
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (Red) (ZRPB/R)
£51.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Complies with EN 54-3 (Type B) and EN 54-23
- 107 dB ±3 dB at 1 m sound output
- 22 site-selectable tone patterns
- White flash at 0.5 Hz
- IP65 weatherproof rating
- UL V0 flame-retardant ABS housing
Frequently bought together
Zeta
Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (White) (ZRPB/W)
Sale price£51.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Raptor MKII Addressable Weatherproof Sounder (Red) (ZRAP/R)
Sale price£51.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Raptor MKII Addressable Weatherproof Sounder (White) (ZRAP/W)
Sale price£51.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (Red) (ZRAPB/R)
Sale price£62.95
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (White) (ZRAPB/W)
Sale price£62.95
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

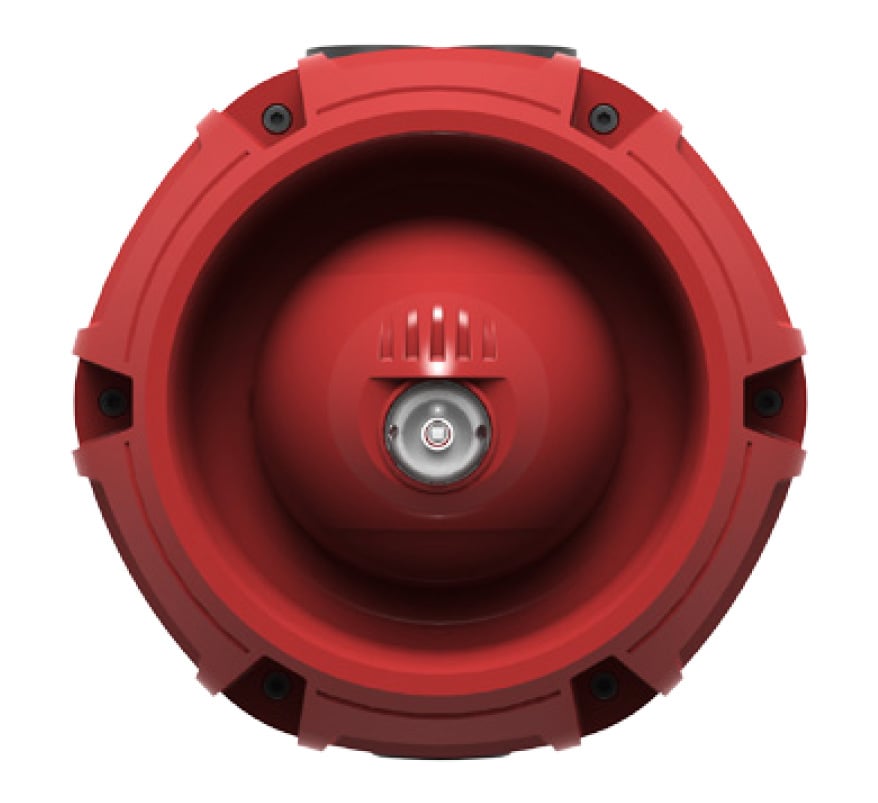

The Zeta Raptor ZRPB/R is a conventional weatherproof sounder beacon (visual alarm device) in red plastic with a white flash, for conventional fire alarm sounder circuits.
It combines a 22-tone sounder with a flashing beacon, complies with EN 54-3 and EN 54-23, and is designed for an electronics-free first fix: the back box is wired first and the electronics fitted later.
Key features
- Complies with EN 54-3 (Type B) and EN 54-23
- 107 dB ±3 dB at 1 m sound output
- 22 site-selectable tone patterns
- White flash at 0.5 Hz
- IP65 weatherproof rating
- UL V0 flame-retardant ABS housing
- 3 x 20 mm cable entries (2 top, 1 bottom)
- First fix, wire-to-back-box design; surface mounting only
Technical specifications
- Model / part no.: ZRPB/R (42-632)
- Voltage: 17-30 V DC
- Current: 70 mA max. at 30 V DC
- Flash colour: white; body colour: red
- Flash frequency: 0.5 Hz
- Sound output: 107 dB ±3 dB at 1 m (tone 0)
- IP rating: IP65 (certified to IP33C)
- Operating temperature: -25 to +70 °C
- Size with back box: 150 x 146 x 107.5 mm
- Weight: 550 g
- LPCB 330s/03; CPR 0832-CPR-F1337
Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (Red) (ZRPB/R)
£51.60
