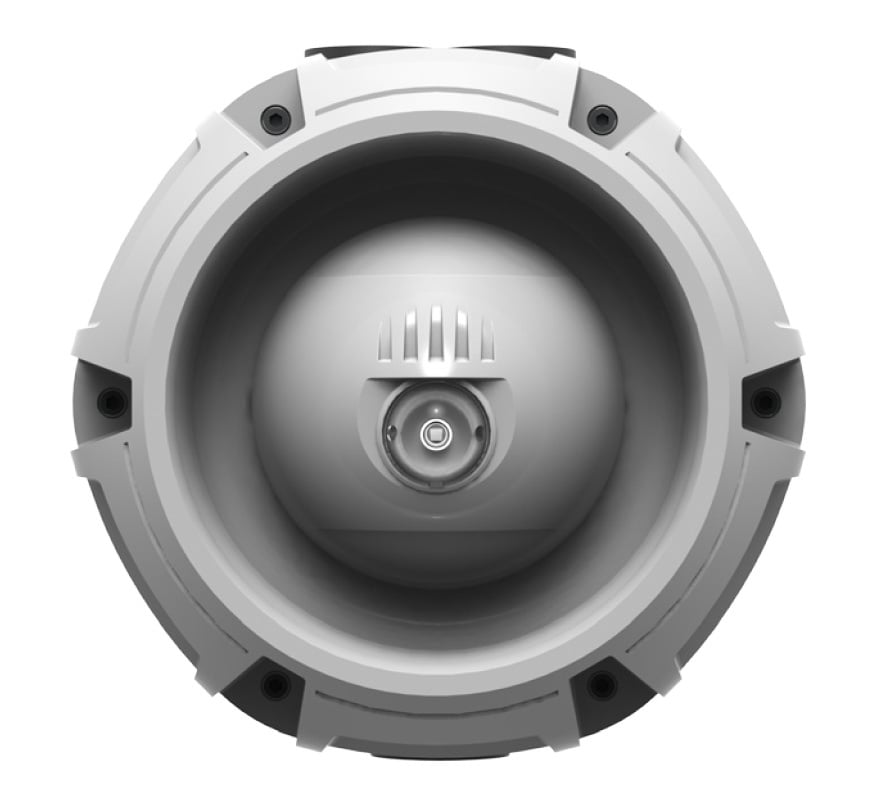

Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (White) (ZRPB/W)
SKU: ZRPB/WBrand: Zeta
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Zeta Raptor Conventional Weatherproof Sounder VAD Beacon (White) (ZRPB/W)
£51.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Complies with EN54 part 3 Type B and EN54 part 23
- Beacon coverage: W-5.1-7.25
- 107dB ±3dB @ 1m sound output
- 22 site-selectable tone patterns
- IP65 rating (certified to IP33C)
- Surface mounting only; UL V0 flame retardant ABS housing
Frequently bought together
Zeta
Zeta Raptor MKII Addressable Weatherproof Sounder (Red) (ZRAP/R)
Sale price£51.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Raptor MKII Addressable Weatherproof Sounder (White) (ZRAP/W)
Sale price£51.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (Red) (ZRAPB/R)
Sale price£62.95
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (White) (ZRAPB/W)
Sale price£62.95
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Simplicity CO 2 Zone Addressable Carbon Monoxide Panel (32 Devices - Metal Enclosure) (S32/CO/M)
Sale price£615.85
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details
The Zeta Raptor ZRPB/W is a white weatherproof conventional horn sounder with an integrated visual alarm device (VAD) beacon and white flash, for indoor and outdoor use on conventional fire alarm sounder circuits. The beacon has an EN54-23 coverage pattern of W-5.1-7.25 and the sounder offers 22 selectable tones. It is designed for an "electronics free" first fix.
Key features
- Complies with EN54 part 3 Type B and EN54 part 23
- Beacon coverage: W-5.1-7.25
- 107dB ±3dB @ 1m sound output
- 22 site-selectable tone patterns
- IP65 rating (certified to IP33C)
- Surface mounting only; UL V0 flame retardant ABS housing
- 3 x 20mm cable entries (2 top, 1 bottom)
Technical specifications
- Part number: 42-633
- Body colour: white; flash colour: white
- Voltage: 17-30V DC
- Current: 70mA max @ 30V DC
- Flash frequency: 0.5Hz
- Sound output: 107dB ±3dB @ 1m (Tone 0, 800Hz/970Hz)
- Operating temperature: -25°C to +70°C
- Size: 150 x 146 x 107.5mm
- Weight: 550g
