Zeta SmartConnect Multi-Loop Input Module (6 Inputs) (SCM-MIM)
£177.40
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 6 Class B supervised inputs
- Each input monitored for open and short circuit
- Each input programmable as alarm or supervisory
- Designed to EN54 part 2
- Front LEDs for active, trouble and communication
- Quick to install: plugs into the panel with an RJ45 cable (cable supplied)
Frequently bought together
Zeta
Zeta SmartConnect Multi-Loop Multi-Relay Output Module (SCM-RM)
Sale price£157.30
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Multi-Loop RS232 Printer Module (SCM-PM)
Sale price£157.30
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Multi-Loop RS485 Network Module (SCM-NM)
Sale price£314.65
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Multi-Loop Touchscreen Repeater Panel (SMART/REP)
Sale price£585.70
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Multiloop Twin 4-20mA Gas Detection Module (SCM-4-20)
Sale price£242.35
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

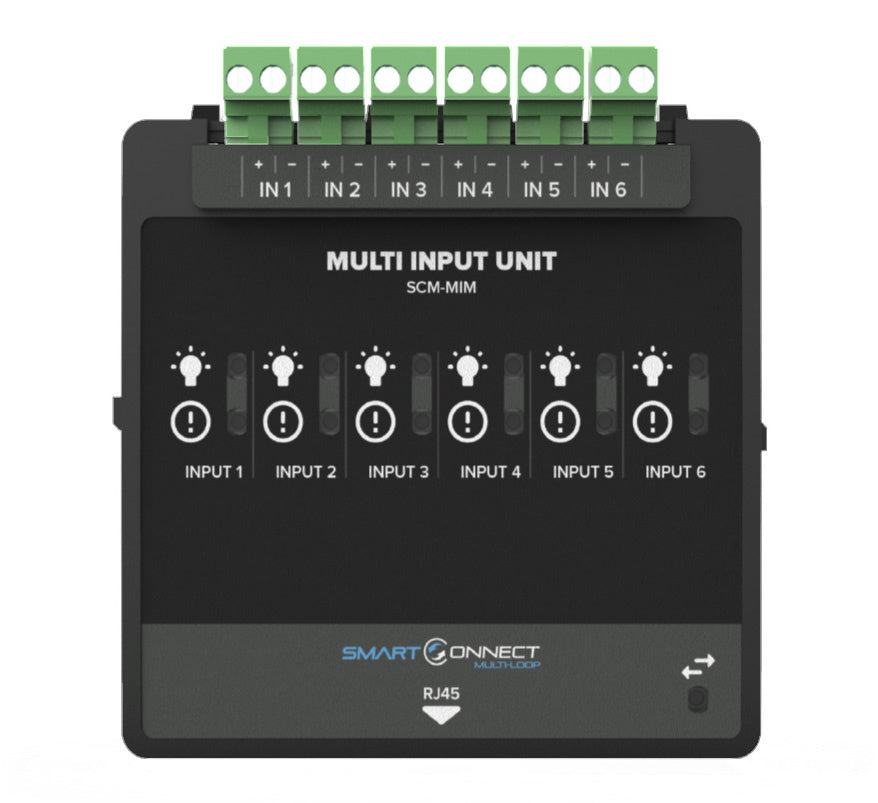

The Zeta SCM-MIM is a six-input module for the Zeta SmartConnect Multi-loop fire alarm panel. It is DIN mounted inside the panel and powered and connected via RJ45. The six Class B inputs are commonly used to monitor ancillary equipment, such as sprinkler systems and external power supplies, and report normal, open, short or alarm status to the panel. Each input can be programmed to give a supervisory or alarm signal.
Key features
- 6 Class B supervised inputs
- Each input monitored for open and short circuit
- Each input programmable as alarm or supervisory
- Designed to EN54 part 2
- Front LEDs for active, trouble and communication
- Quick to install: plugs into the panel with an RJ45 cable (cable supplied)
Technical specifications
- Part number: 37-392
- Approval: LPCB
- Input maximum line impedance: 10Ω
- End of line resistor: 4K7Ω; trigger resistor 1KΩ
- Operating temperature: 0°C to 49°C; humidity 93% non-condensing
- Size: 103 x 97 x 46mm; weight 0.2kg
- Recommended cable: 0.3mm² to 0.8mm² (22 to 18 AWG)
