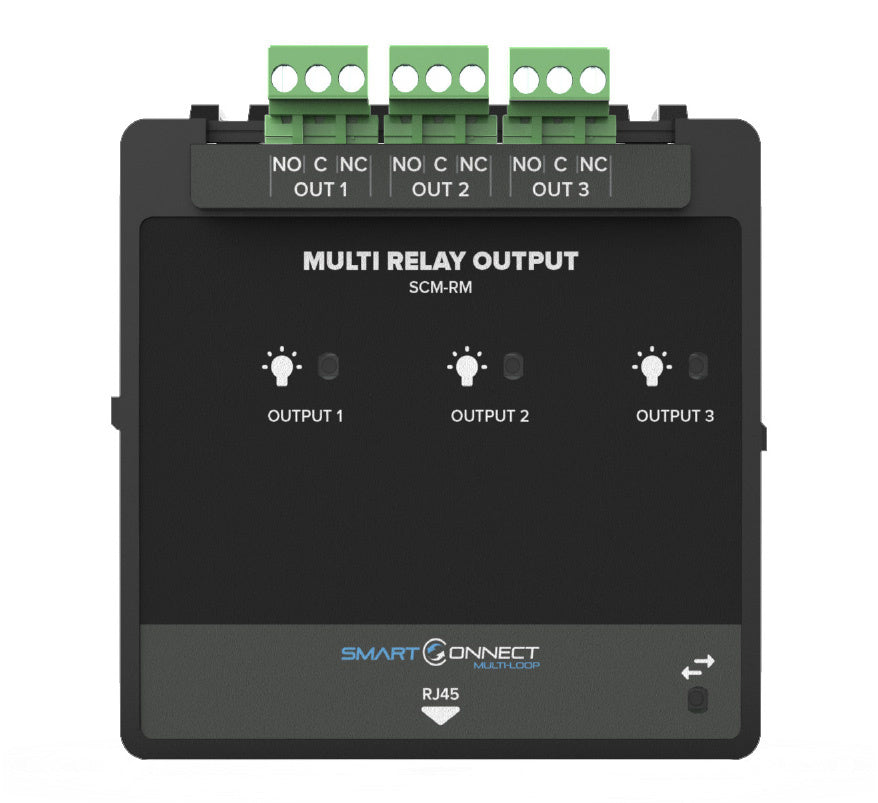

The Zeta SCM-RM is a multi relay output module for the Zeta SmartConnect Multi-loop fire alarm panel. It is DIN mounted inside the panel and powered and connected via RJ45. Its three Form C relays can be set as common alarm, common fault or common technical alarm outputs, or programmed through cause and effect, for example to control lifts or fans.
Key features
- 3 x Form C relay outputs
- Relay modes: common alarm, common fault, common technical alarm or programmable
- Designed to meet EN54 part 2
- Front unit status indications
- Quick to install: plugs into the panel with an RJ45 cable (cable supplied)
Technical specifications
- Part number: 37-394
- Approval: LPCB
- Switching capacity: 5A, 30V DC (resistive)
- Operating temperature: -5°C to 40°C; humidity 93% non-condensing
- Size: 103 x 97 x 46mm (H x W x D); weight 0.2kg
- Terminal wiring size: 0.8mm² to 2.5mm²
