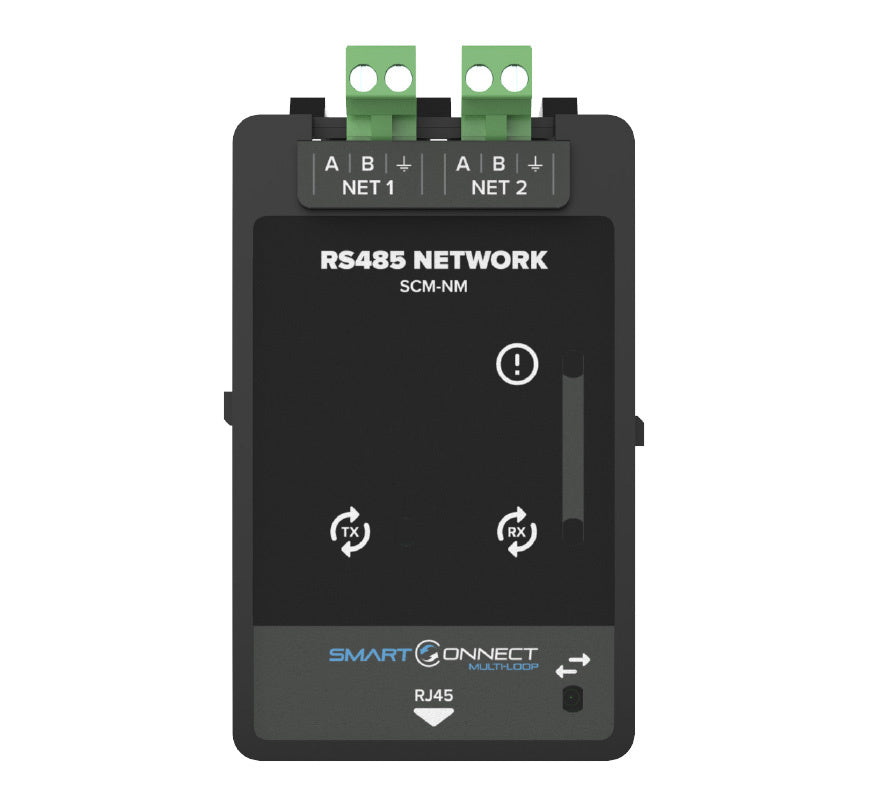

The Zeta SCM-NM is an RS485 network module for the Zeta SmartConnect Multi-loop fire alarm panel. It allows panels to be linked peer-to-peer so that signals can be monitored, indicated and controlled across a large site. On a network, events are reported at all panels and panels can be programmed remotely from other panels.
Key features
- Peer-to-peer networking of up to 64 panels
- Remote programming and cross-network cause and effect
- Total network cable length of up to 10km
- Ring or bus topology; fault tolerant design
- Front LEDs for trouble, RS485 TX, RS485 RX and communication
- Quick to install: plugs into the panel with an RJ45 cable (cable supplied)
Technical specifications
- Part number: 37-396
- Approval: LPCB
- Communication protocol: RS485
- Maximum distance between nodes: 1km with screened data cable
- Operating temperature: 0°C to 49°C; humidity 93% non-condensing
- Size: 105 x 57 x 47mm (H x W x D); weight 0.15kg
