Zeta SmartConnect Multi-Loop Touchscreen Repeater Panel (SMART/REP)
SKU: SMART/REPBrand: Zeta
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Zeta SmartConnect Multi-Loop Touchscreen Repeater Panel (SMART/REP)
£585.70
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 4.3" colour touch screen display
- 8032 event log
- Works on a network of up to 64 panels peer-to-peer
- Program a networked SmartConnect Multi-loop panel from the repeater's front screen
- Wiring lengths up to 1000 metres from the control panel
- Bus or ring network wiring (ring recommended for a redundant path)
Frequently bought together
Zeta
Zeta SmartConnect Multiloop Twin 4-20mA Gas Detection Module (SCM-4-20)
Sale price£242.35
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Touchscreen 1 Loop Addressable Fire Alarm Panel (Metal Enclosure) (SMART1/M)
Sale price£726.25
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Touchscreen 1 Loop Addressable Fire Alarm Panel (SMART1)
Sale price£664.05
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Xtratone Conventional Wall Sounder (Red) (ZXT/R)
Sale price£28.15
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Xtratone Conventional Wall Sounder (White) (ZXT/W)
Sale price£28.15
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

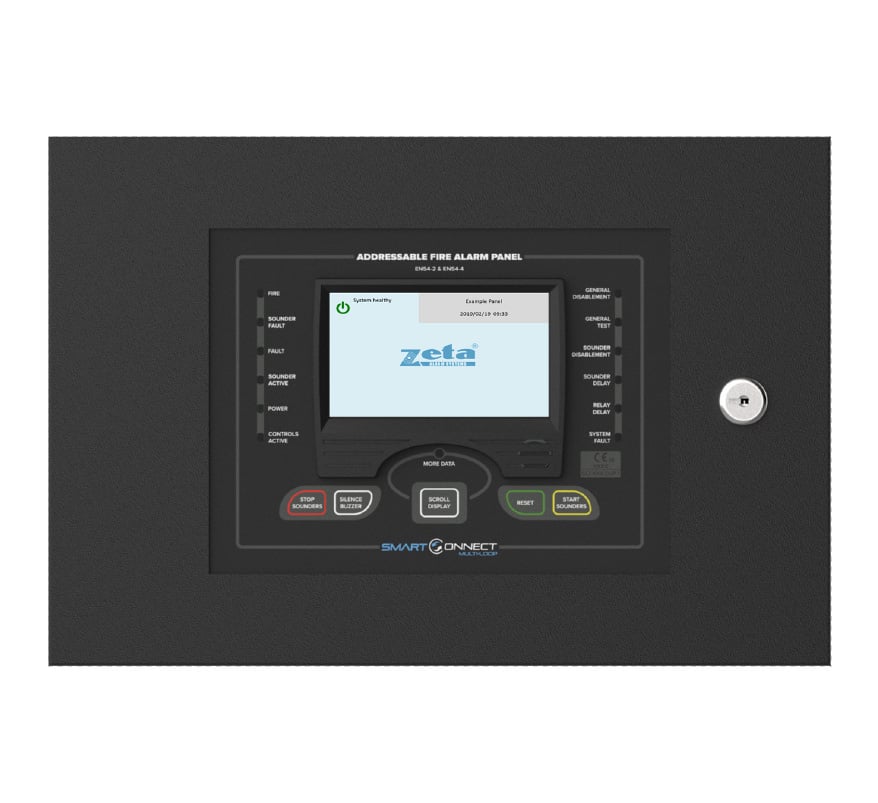

The Zeta SMART/REP is a fully functioning touch screen repeater for the Zeta SmartConnect Multi-loop fire alarm system. It can monitor, operate and program networked SmartConnect Multi-loop control panels from anywhere on the network, and its LED, button and menu layout replicates the main panel, so it feels familiar to anyone trained on the system. It is powered from the main panel and has a small black enclosure for surface or flush mounting.
Key features
- 4.3" colour touch screen display
- 8032 event log
- Works on a network of up to 64 panels peer-to-peer
- Program a networked SmartConnect Multi-loop panel from the repeater's front screen
- Wiring lengths up to 1000 metres from the control panel
- Bus or ring network wiring (ring recommended for a redundant path)
- 8 password-protected access accounts (1 admin, 7 user)
- 13 status LED indicators and 5 function buttons
Technical specifications
- Operating voltage: 28V DC
- Quiescent current: 78mA; maximum current 100mA
- Communication protocol: RS485
- Maximum distance between nodes: 1km with screened data cable, 100m with standard fireproof cable
- Display: 4.3" resistive touch screen, 480 x 272 pixels
- Enclosure: 230 x 340 x 96mm (H x W x D), Zintec, RAL9005 black
- Weight: 2.3kg; 5 cable entries
- Operating temperature: -5°C to 40°C; relative humidity 93% non-condensing
