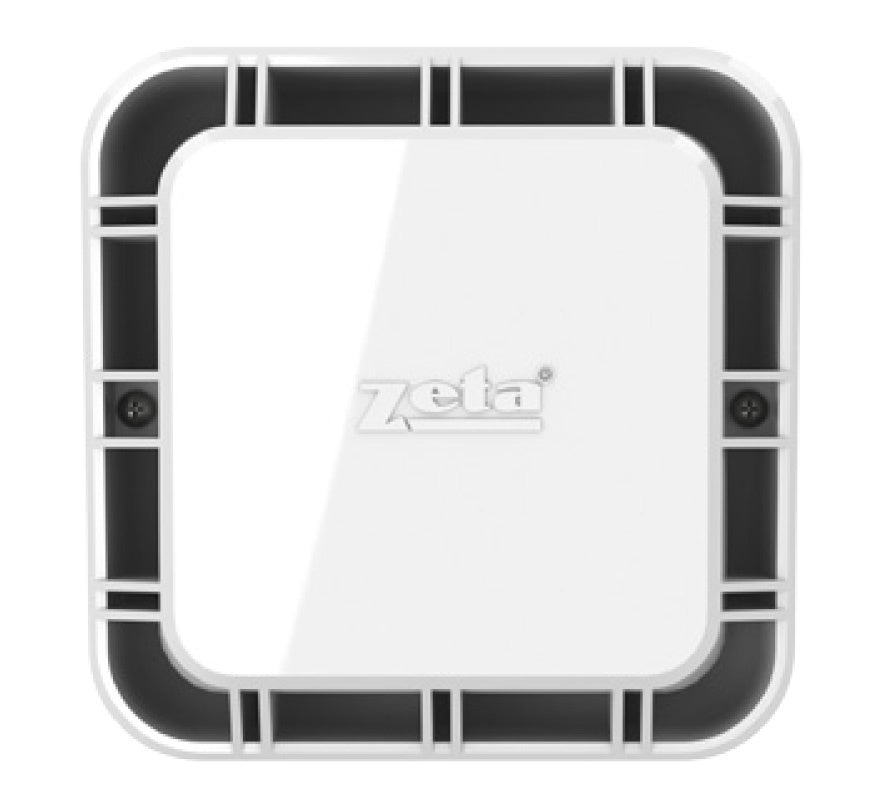

The Zeta Xtratone ZXT/W is a white conventional wall sounder designed to EN54 part 3, for use on conventional fire alarm sounder circuits. It offers a choice of 22 site-selectable tones, and field wiring terminates at the back box for a clean first fix before the electronics are fitted.
Key features
- Complies with EN54 part 3, Type A (indoor)
- 102dB @ 1m sound output
- 22 site-selectable tone patterns
- Flush or surface fixing
- Housed in UL V0 flame retardant ABS
- 4 x 20mm cable entries (2 top, 2 bottom)
- First fix, wire-to-back-box design
Technical specifications
- Part number: 42-607
- Body colour: White
- Voltage: 17-30V DC
- Current: 10mA @ 24V DC
- Sound output: 102dB @ 1m (Tone 0, 800Hz/970Hz)
- IP rating: IP21C
- Operating temperature: -10°C to +55°C
- Size: 105 x 105 x 49mm (105 x 105 x 82mm with back box)
- Weight: 200g
