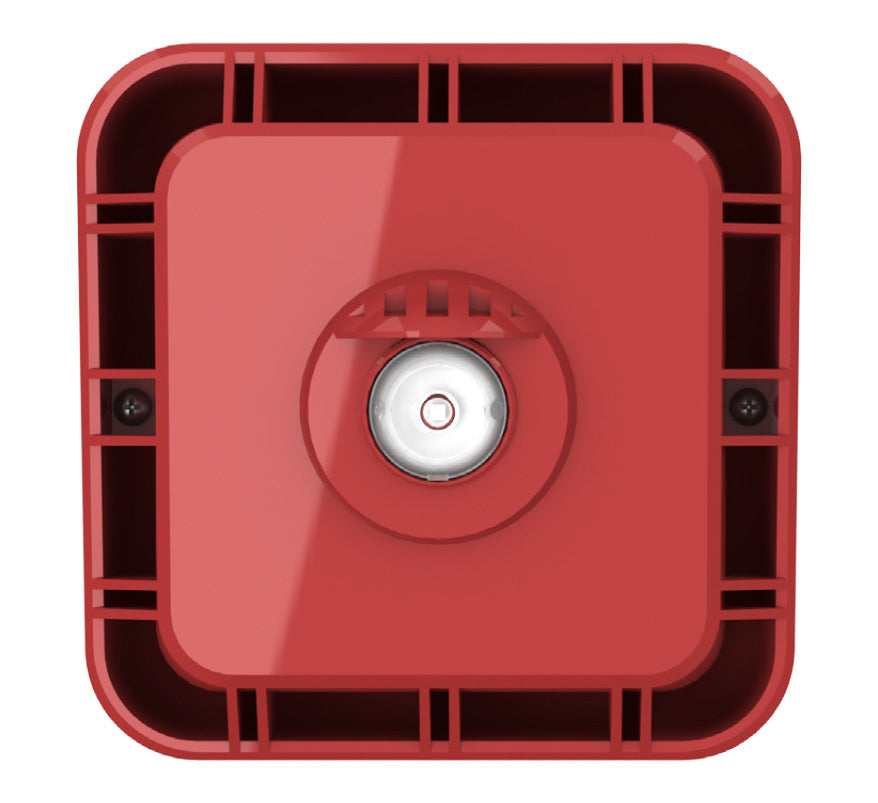

Zeta Xtratone Conventional Wall Sounder VAD Beacon (Red Body / White Flash) (ZXTB/R)
SKU: ZXTB/RBrand: Zeta
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Zeta Xtratone Conventional Wall Sounder VAD Beacon (Red Body / White Flash) (ZXTB/R)
£40.85
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Complies with EN54 part 3 Type A and EN54 part 23
- Beacon coverage: W-3.0-8.9
- 102dB @ 1m sound output
- 22 site-selectable tone patterns
- Flush or surface fixing
- Housed in UL V0 flame retardant ABS
Frequently bought together
Zeta
Zeta Xtratone Conventional Wall Sounder VAD Beacon (White Body / White Flash) (ZXTB/W)
Sale price£40.85
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Xtratone MKII Addressable Indoor Wall Sounder (Red) (MKII-AXT/R)
Sale price£47.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Xtratone MKII Addressable Indoor Wall Sounder (White) (MKII-AXT/W)
Sale price£47.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
Sale price£59.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (White) (MKII-AXTB/W)
Sale price£59.60
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details
The Zeta Xtratone ZXTB/R is a conventional combined wall sounder and visual alarm device (VAD) beacon with a red body and white flash, for use on conventional fire alarm sounder circuits. The beacon has an EN54-23 coverage pattern of W-3.0-8.9 and the sounder offers 22 selectable tones. Field wiring terminates at the back box for an "electronics free" first fix.
Key features
- Complies with EN54 part 3 Type A and EN54 part 23
- Beacon coverage: W-3.0-8.9
- 102dB @ 1m sound output
- 22 site-selectable tone patterns
- Flush or surface fixing
- Housed in UL V0 flame retardant ABS
- 4 x 20mm cable entries (2 top, 2 bottom)
Technical specifications
- Part number: 42-608
- Body colour: Red; flash colour: white
- Voltage: 17-30V DC
- Current: 70mA max @ 24V DC
- Flash frequency: 0.5Hz
- Sound output: 102dB @ 1m (Tone 0, 800Hz/970Hz)
- IP rating: IP21C
- Operating temperature: -10°C to +55°C
- Size: 105 x 105 x 56mm (105 x 105 x 89mm with back box)
- Weight: 210g
