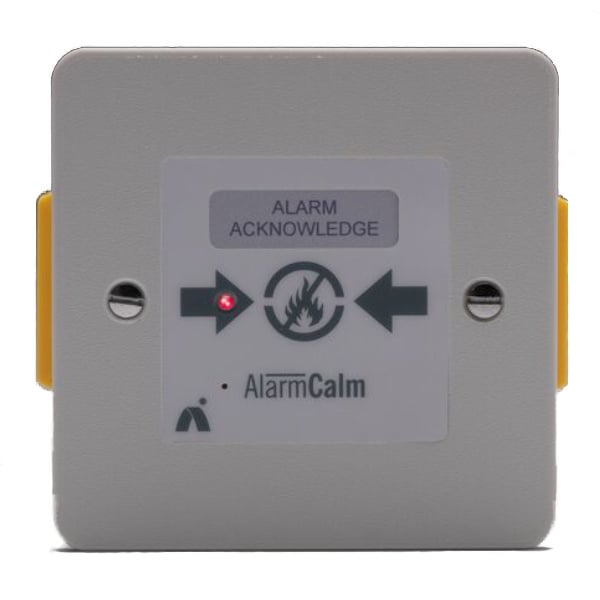

The Advanced MXP-541V-002 is an AlarmCalm button for the Argus Vega protocol, part of Advanced's AlarmCalm false alarm management (FAM) solution. It is a dedicated, loop-powered addressable module that connects to an Argus protocol detection loop on MxPro 5 multi-protocol panels (and Axis EN systems).
Placed inside a dwelling or apartment, the button lets occupants acknowledge a local fire condition: pressing it within the programmable stage-1 period silences locally programmed sounders and starts a stage-2 period, helping to verify whether an activation is a genuine alarm before the panel enters the fire condition.
Key features
- Push-button input with LED output (poll/activated indication)
- Optional programmable audible buzzer
- Fits a single-gang UK electrical back box
- Fully addressable, recognised by MxPro 5 panels as an AlarmCalm unit
- Fully programmable with AlarmCalm software, including verification and second-stage times
- Wiring terminations suitable for all Advanced recommended loop cables
- Designed to reduce unwanted alarms
Technical specifications
-
Part number: MXP-541V-002
-
Protocol: Argus Vega
-
Dimensions (H x W x D): 86 x 86 x 23mm
-
Connections: Loop in, loop out and screen
-
User indication: LED blinks on poll, pulses during stage 1, on during stage 2 (acknowledged)
-
Buzzer: 75dB at 1m
-
Current (Argus Vega): Quiescent 0.6mA; alarm 4.5mA; buzzer 8.5mA
-
Operating voltage: 17-28V
-
Address range (Argus Vega): 1-240
