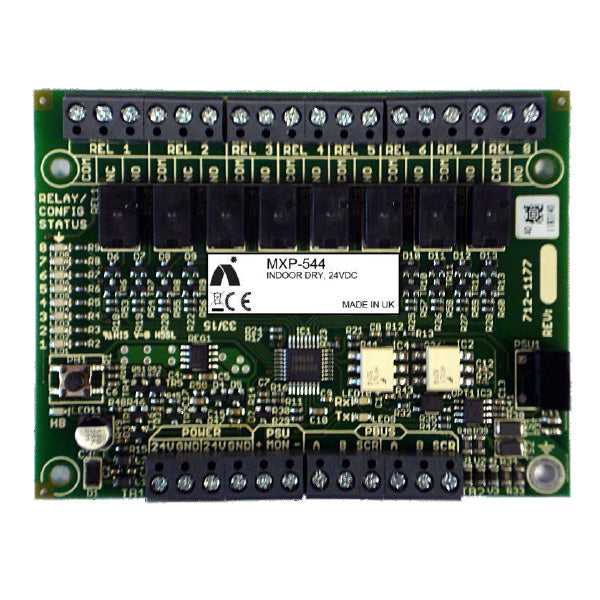

Advanced MXP-544 P-Bus 8-way Relay card

The Advanced MXP-544 is the Peripheral 8-Way Relay Card, an internal P-Bus module for the MxPro 5 MX-5000 range of fire alarm control panels. It provides eight configurable relay outputs.

The card is configured using a positive action sequence with its on-board push button and LED indicators, so it can be safely configured and inspected. Up to 16 cards can be connected to a panel, adding up to 128 SELV relay outputs. Cards are protocol independent.

Key features

• 8 configurable relay outputs (2 x Form C, 6 x Form A), SELV
• Up to 16 cards per panel, giving up to 128 extra relays
• Powered from the panel's local power supply
• Protocol independent
• Approved to EN 54-18

Technical specifications

• Part code: MXP-544
• Power supply: 24V DC
• Quiescent current: 30mA at 24V
• Maximum current: 80mA at 24V (8 relays on)
• Relay outputs: SELV, 2 x Form C, 6 x Form A
• Contact rating: 1A at 30V DC (resistive)
• Contact resistance: 100mΩ
• Contact endurance: 100,000 operations min at rated load
• P-Bus EOL: 150Ω
• PSU monitor EOL: 10kΩ
• Operating temperature: -5°C to 40°C
• Humidity: 95% non-condensing max
• Dimensions (H x W x D): 15 x 105 x 80mm
• Weight: 80g
• Requirements: Mount locally to the power supply; PC-NET-003 configuration tool v6.91 onwards
