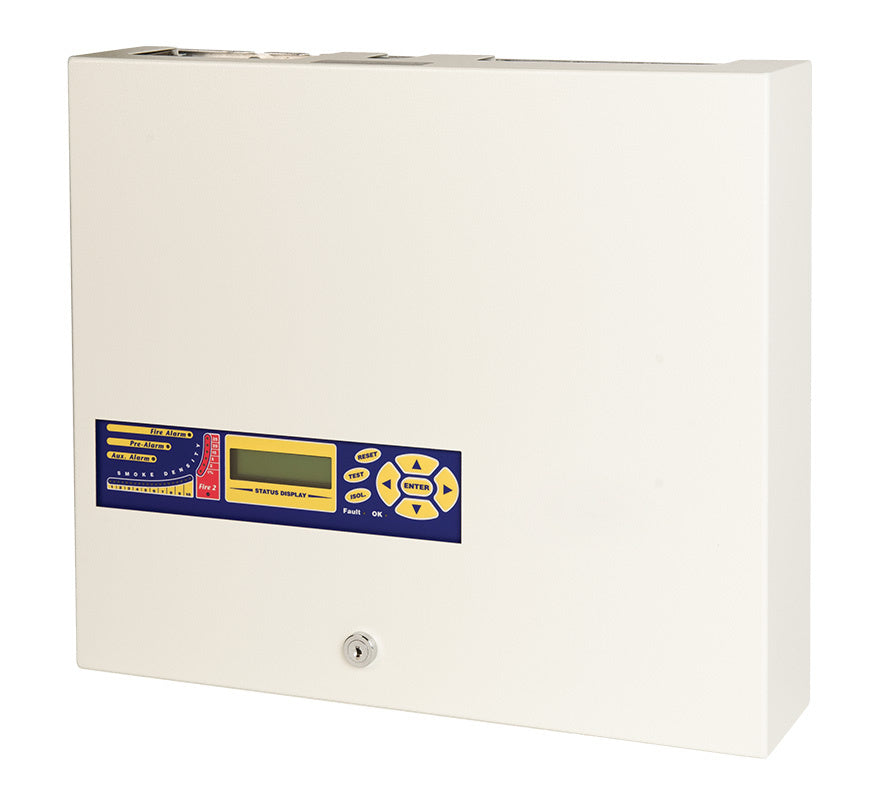

The AirSense Stratos HSSD2 High Sensitivity Smoke Detector (9-30706) is a large-area aspirating smoke detector (ASD) with a sheet steel enclosure, providing very high sensitivity smoke detection for the earliest warning of an incipient fire with a minimum of nuisance alarms. Laser-based forward light scatter gives reliable early warning over areas of up to 2000m² through a combined sampling pipe length of up to 200m.
Volt-free fire and fault relay outputs allow remote monitoring by a local fire detection panel or BMS, and RS485 communications are built in for networking. A Command Module is available for central monitoring and display. It is suited to computer rooms, data storage, equipment racks, plant and motor rooms, air-conditioning units and duct protection, heritage properties, prison cells and other critical areas.
Key features
- Laser-based forward light scatter for very high sensitivity
- ClassiFire® Perceptive Artificial Intelligence automatically adjusts the operating parameters to the protected environment and to contamination of the dust separation system, so the detector runs at high sensitivity in a computer room or reduced sensitivity in a smoky area without complex set-up
- Patented Dual Technology LDD 3D3 Laser Dust Discrimination avoids unwanted alarms from dust
- Up to 2000m² coverage from 4 pipe inlets
- RS485 communications built in; SenseNET compatible, up to 127 detectors per loop
- Options: Addressable Protocol Interface Cards (APIC™), remote display units and MatrixScan virtual addressable location software
- CPR, LPCB, VdS, NF, CSIRO, UL and FM approved
Technical specifications
- Detection principle: laser light scattering mass detection and particle evaluation
- Sensitivity range: 0.0015 to 25% obs/m
- Particle sensitivity range: 0.003 to 10 microns
- Alarm levels: 4 (Aux, Pre-alarm, Alarm and Alarm 2)
- Sampling pipe: 100m maximum single run (50m in moving air), 200m combined maximum; 27mm OD; up to 100 holes
- Pipe inlets: 4; exhaust: 1 (optional)
- Inputs: 3 programmable
- Outputs: 5 (Pre-Alarm, Alarm, Alarm 2, Aux Alarm N/O and Fault N/C), rated 500mA at 30V
- Operating voltage: 21.6 to 26.4V DC
- Current consumption: 450mA at fan speed 8
- Status indication: LED and LCD, with keypad user interface
- Enclosure: sheet steel, cream, wall mount
- Cable entries: 6 x M20
- Dimensions: 427 x 372 x 95mm (W x H x D)
- Weight: 5.2kg
- Operating temperature: -10°C to +60°C (EN54-20)
- Relative humidity: 0 to 90% non-condensing
- IP rating: IP40 (indoor)
- Certification: EN54-20, FM, UL
