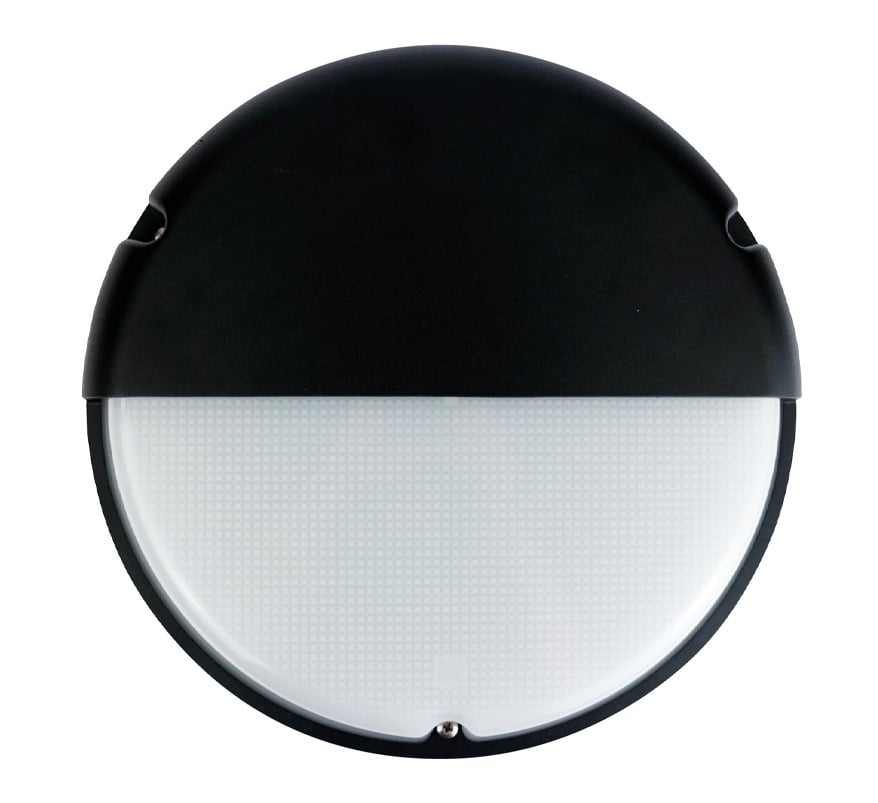

BLE DORE 15W IP65 Die-Cast Circular Emergency Amenity Light c/w Microwave Sensor + Self Test - Black (EL-120802-M3-MW)

The BLE DORE EL-120802-M3-MW is a black, die-cast circular eyelid amenity light with a 3-hour emergency function. An integral microwave sensor switches the light on when movement is detected, and self-test electronics carry out routine emergency testing automatically. Its IP65, weatherproof construction and removable eyelid make it a versatile choice for building exteriors, entrances and walkways, with a replaceable 6.4V LiFePO4 battery for emergency lighting if the mains supply fails.

Key features

• High-quality die-cast aluminium base and hood
• Removable eyelid for flexibility during installation
• IP65 rated and weatherproof
• Impact-modified polycarbonate opal diffuser
• Reduced power consumption
• 3CCT selectable colour temperature
• Integral microwave presence sensor
• Self-test 3-hour emergency version

Technical specifications

• Part number: EL-120802-M3-MW
• Supply: 220-240V AC, 50Hz
• Power: 15W
• Power factor: 0.94
• Electrical class: Class I
• Light source: LED
• Colour temperature: 3CCT
• CRI: 70
• Beam angle: 110°
• Mains lumen output: 550 / 1090lm (eyelid/non-eyelid)
• Emergency lumen output: 90 / 180lm (eyelid/non-eyelid)
• Emergency duration: 3 hours
• Testing: Self Test
• Battery: LiFePO4 6.4V, 1.0Ah, replaceable
• Recharge time: 24 hours
• Sensor: Microwave Sensor
• Sensor type: Electromagnetic Wave Doppler Effect Principle Technology
• Maximum mounting height: 6 Metres
• Detection area: 1 Metre to 10 Metres
• Daylight threshold: 2 lux to 2000 lux
• IP rating: IP65
• IK rating: IK10
• Housing: Die-cast aluminium
• Diffuser: opal polycarbonate
• Colour: Black
• Mounting: Surface
• Dimensions: Ø 330mm, D 97mm
• Weight: 3208g
• Operating temperature: 0 to +40°C
• Lamp life: 50,000 hours
• Product warranty: 10 years
• Battery warranty: 10 years
• Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
• Marking: CE and UKCA
