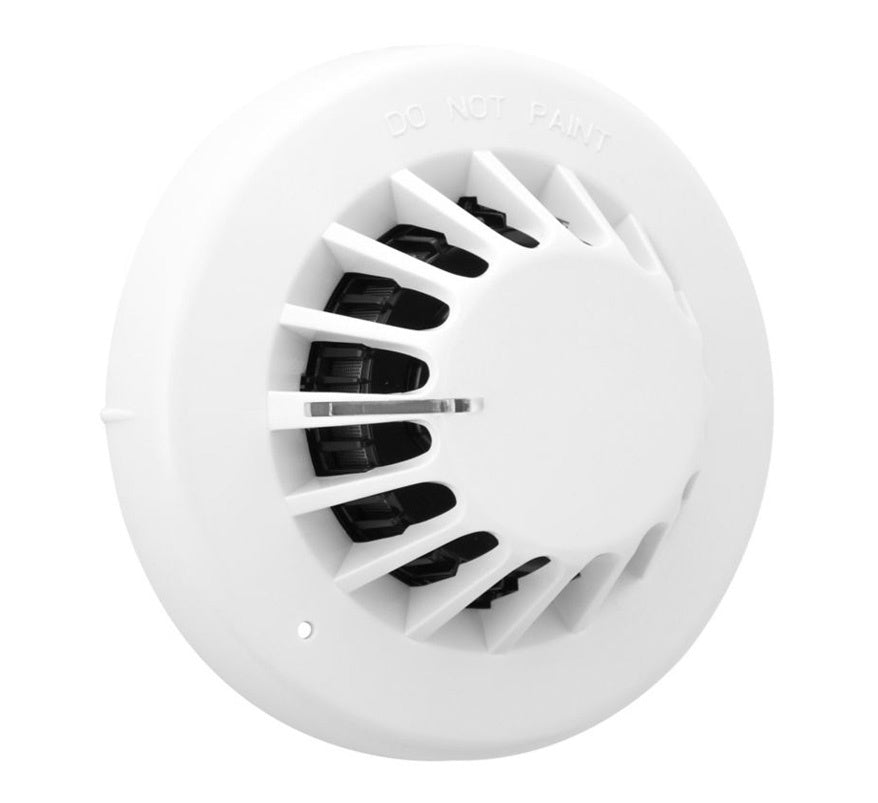

Eaton Conventional Photo-Thermal Multisensor Detector (EFXN632)

The Eaton EFXN632 is a conventional photo-thermal multisensor detector that combines a photoelectric (optical) smoke sensor with a heat sensor. It is certified to EN 54-7 for smoke detection and EN 54-5 Class A2S for heat, and is used with Eaton conventional and BiWire conventional fire alarm panels.

The detector automatically compensates for gradual contamination such as dust build-up, and fits the common conventional detector base (EFXN520, supplied separately).

Key features

• Photoelectric smoke plus heat (Class A2S, 60°C alarm temperature)
• Automatic drift compensation for dust contamination
• Red alarm LED with 360° visibility via lightpipe
• Positive click when the detector is correctly located in its base
• Optional locking tab to prevent removal without a tool
• Low profile, discreet white design
• Rear or side cable entry via the common mounting base
• Optional remote indicator output

Technical specifications

• Catalogue number: EFXN632
• Detection: Photo-thermal: optical smoke with heat, Class A2S
• Standards: EN 54-5, EN 54-7
• Operating voltage: 15V to 30V DC
• Standby current: 30µA max.
• Start-up current: 340µA max. (20 seconds)
• Alarm current: 25mA max.
• Area coverage: 100m² (subject to local standards)
• Base: EFXN520 conventional base (supplied separately)
• Dimensions: 104mm diameter x 42mm (55mm with base)
• Weight: 0.076kg
• Construction: PC/ABS, white
• Ingress protection: IP40
• Cable: 0.5mm² to 2.5mm², FIRETUF, FP200 or MICC
