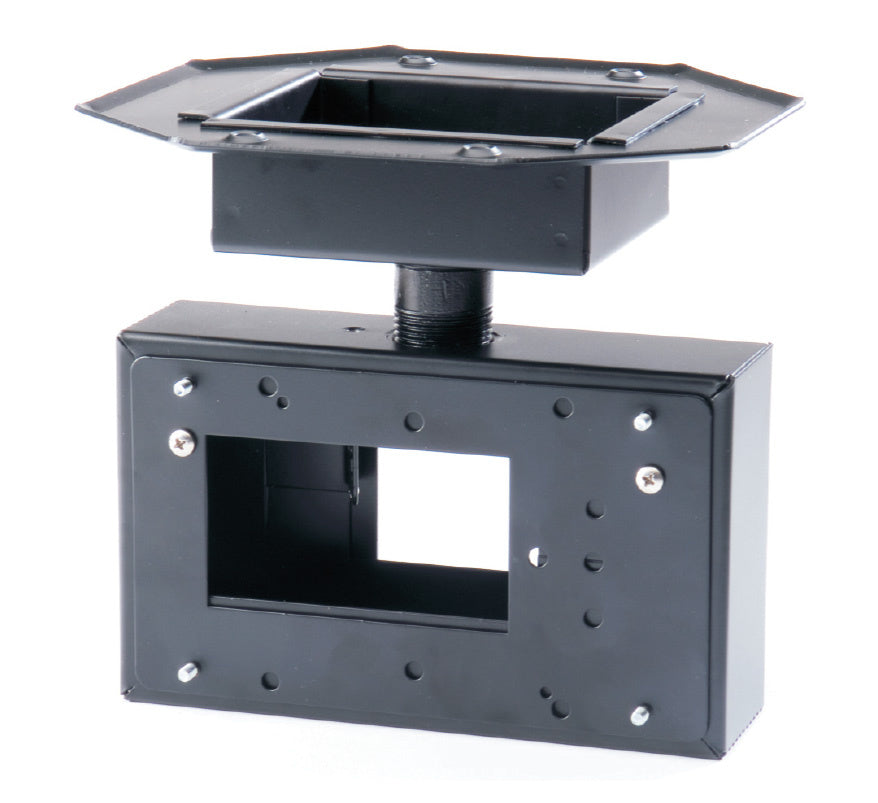

The FFE Fireray 5000-014 is a ceiling pendant mount for hanging Fireray beam detectors or reflective prisms from the ceiling on a threaded pipe, rather than fixing them to a wall. It is supplied with universal mounting plates and a 1in x 12in threaded nipple.
The mounting box has hole patterns for the Fireray 5000 base, Fireray 3000 (with 3000-202 plate), Fireray 50/100R, the 5000-005 Universal Mounting Bracket and prism mounting.
Key features
- Ceiling pendant mounting for Fireray detectors and reflective prisms
- Universal mounting plates included
- 1in x 12in threaded nipple supplied; other lengths can be provided by the contractor
- Pipe grommets protect the wiring and a collar set screw locks the pipe
- Top plate fixes with four mounting holes to a rigid surface
Technical specifications
- Part number: 5000-014
- Weight: 7.5lb (approx. 3.4kg)
- Fixings: (8) 10-32 flange nuts; (4) #14 x 1-1/4in flat head screws
- Compatible with: Fireray 5000 base, Fireray 3000 (with 3000-202), Fireray 50/100R, 5000-005 Universal Mounting Bracket and reflective prisms
What's in the box
- Ceiling mount box
- 2 x mounting plates and 1 x blank mounting cover plate
- 1in x 12in threaded nipple
