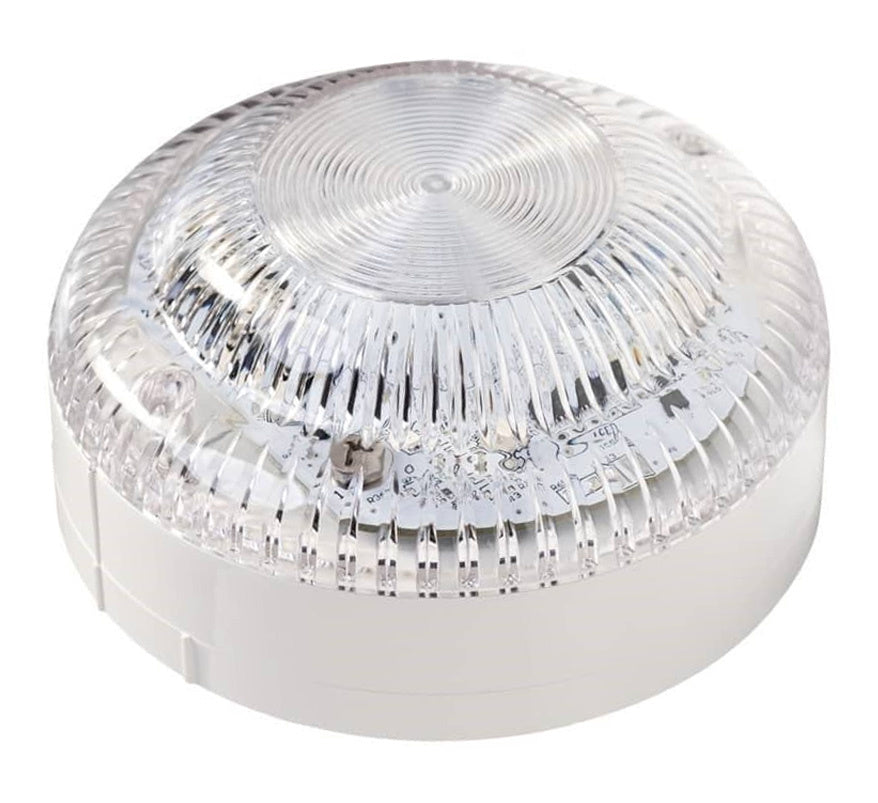

Global Fire VALKYRIE AB Addressable Wall Mount Beacon (White) (VALKYRIE-AB-WHT)

The Global Fire Equipment (GFE) VALKYRIE AB is a wall-mounted addressable beacon for GFE analogue addressable fire alarm loops, supplied here in a white housing. It gives a highly visible flash from high-intensity LEDs while drawing very little loop current.

Up to 32 individually addressed beacons can be installed per loop, occupying addresses 94 to 125. Where individual address reporting is not needed, the beacon can be set up as a shadow beacon, which frees loop addresses for more detection devices.

Key features

• Loop-powered addressable wall-mounted beacon
• Up to 32 individually addressed beacons per loop (addresses 94 to 125)
• Address set on switches 1 to 5 of the 8-way DIL switch
• Shadow beacon option: does not take a loop address (shadow beacons are not monitored by the panel and draw 3 mA in alarm, which must be included in loop load calculations)
• High-intensity LED technology with very low current consumption
• For indoor use

Technical specifications

• Supply voltage: loop, 20V to 30V DC
• Loop current (quiescent): 0.5mA
• Loop current (alarm, beacon): 3mA maximum
• Maximum cable size: 2.5mm²
• Operating temperature: -10°C to 55°C
• Maximum humidity: 95% RH non-condensing
• Colour / case material: red or white / ABS (this listing: white)
• Protection: IP44, Type A, indoor use
• Dimensions: 110mm (D) x 49.5mm (H)
• Weight: 150g including beacon; 180g including packaging
