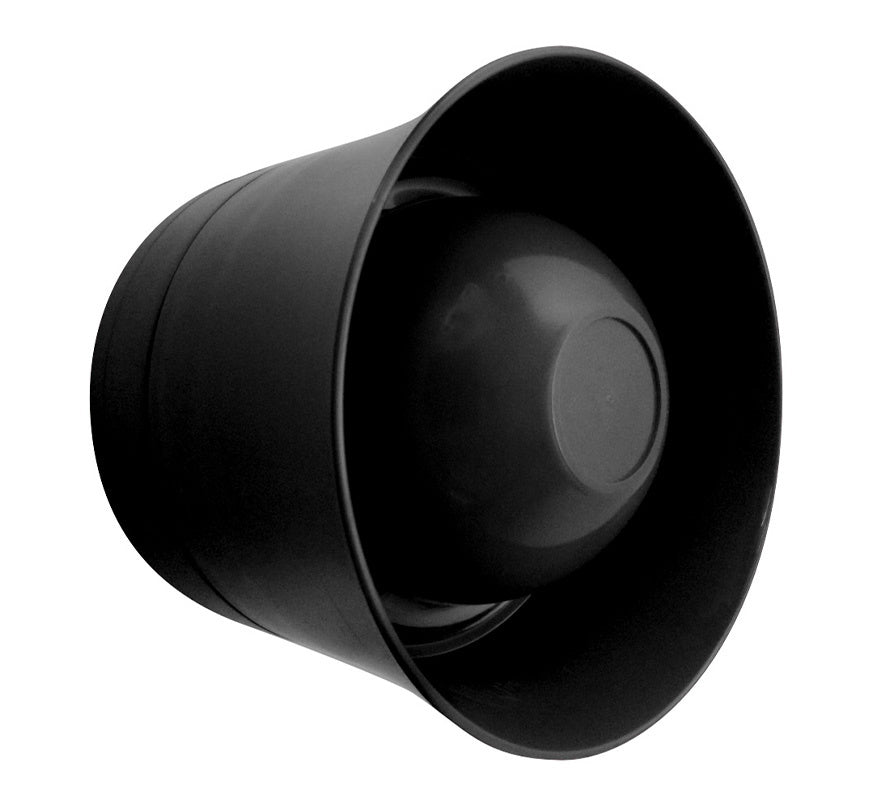

Global Fire VALKYRIE AS Addressable Wall Mount Sounder (Black) (VALKYRIE-AS-BLK)

The Global Fire Equipment VALKYRIE AS is a low-power addressable wall-mounted sounder, certified to EN 54-3. This listing is the black version (VALKYRIE-AS-BLK).

It is used on the loop of Global Fire Equipment analogue addressable fire alarm systems. When individual address reporting is not needed it can be set as a shadow device, which does not report back to the panel.

Key features

• Up to 32 individually addressed sounders per loop, using addresses 94 to 125
• Address set with switches 1 to 5 of the 8-way DIL switch
• Four tones, selected with DIL switches 6 and 7
• Can be set as a shadow sounder with no address of its own, freeing addresses for detectors (shadow devices are not monitored and draw 10 mA in alarm)
• Low power consumption
• Wall mounted, black finish

Technical specifications

• Supply voltage: loop powered, 20 V to 30 V DC
• Quiescent loop current: 550 µA max. (with isolator)
• Current (sounder/beacon active): 10 mA - 280 mW at 28 V DC, including isolator
• Maximum sounder output: 100 dB at 1 m (30 V DC)
• Cable size: 0.5 to 2.5 mm²
• Reset/start-up time: 20 seconds max.
• Protection: IP21C, Type A indoor use
• Case material: ABS and PC
• Operating temperature: -10°C to 55°C; humidity 95% RH non-condensing
• Dimensions: 110 (D) x 85 (H) mm including base
• Weight: 254 g including base
• Certification: EN 54-3 (1328-CPR-0286)
