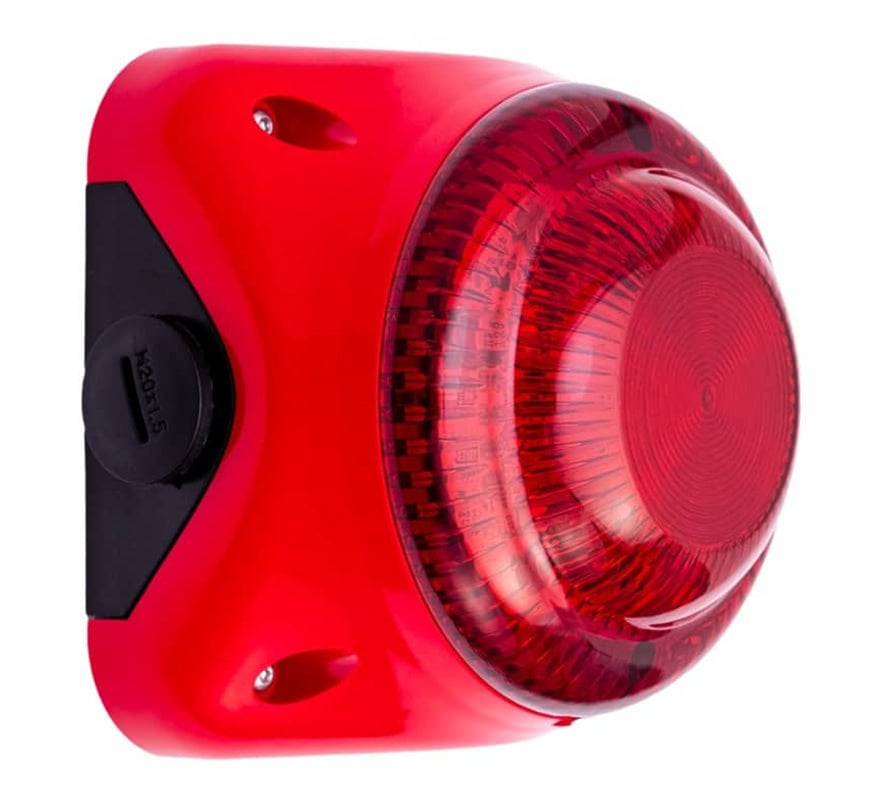

Global Fire VALKYRIE ABI IP65 Addressable Wall Mount Beacon with Isolator (Red) (VALKYRIE-ABI-IP65)

The Global Fire Equipment (GFE) VALKYRIE ABI IP65 is a wall-mounted addressable beacon with a built-in isolator, designed specifically for outdoor use on GFE analogue addressable fire alarm loops. It uses high-intensity LEDs for a highly visible flash with very low current consumption.

Up to 32 individually addressed beacons can be installed per loop, occupying addresses 94 to 125. Where individual address reporting is not needed, the unit can be configured as a shadow beacon to free loop addresses for detection devices.

Key features

• Addressable wall-mounted beacon with isolator
• IP65 rated, Type B, for outdoor use
• Up to 32 individually addressed beacons per loop (addresses 94 to 125)
• Address set on switches 1 to 5 of the 8-way DIL switch
• Shadow beacon option (shadow beacons are not monitored by the panel and draw 3 mA in alarm, which must be included in loop load calculations)
• High-intensity LED technology with very low current consumption

Technical specifications

• Order code: VALKYRIE ABI IP65
• Supply voltage: loop, 20V to 30V DC
• Loop current (quiescent): 0.5mA
• Loop current (alarm, beacon): 3mA maximum
• Maximum cable size: 2.5mm²
• Operating temperature: -25°C to 70°C
• Maximum humidity: 95% RH non-condensing
• Colour / case material: red / ABS
• Protection: IP65, Type B, outdoor use
• Dimensions: 112mm (D) x 82mm (H)
• Weight: 205g including sounder base; 240g including packaging
