Hochiki CSBB-E Conventional Sounder VID Beacon Base - Ivory Case (non EN54-23 compliant)

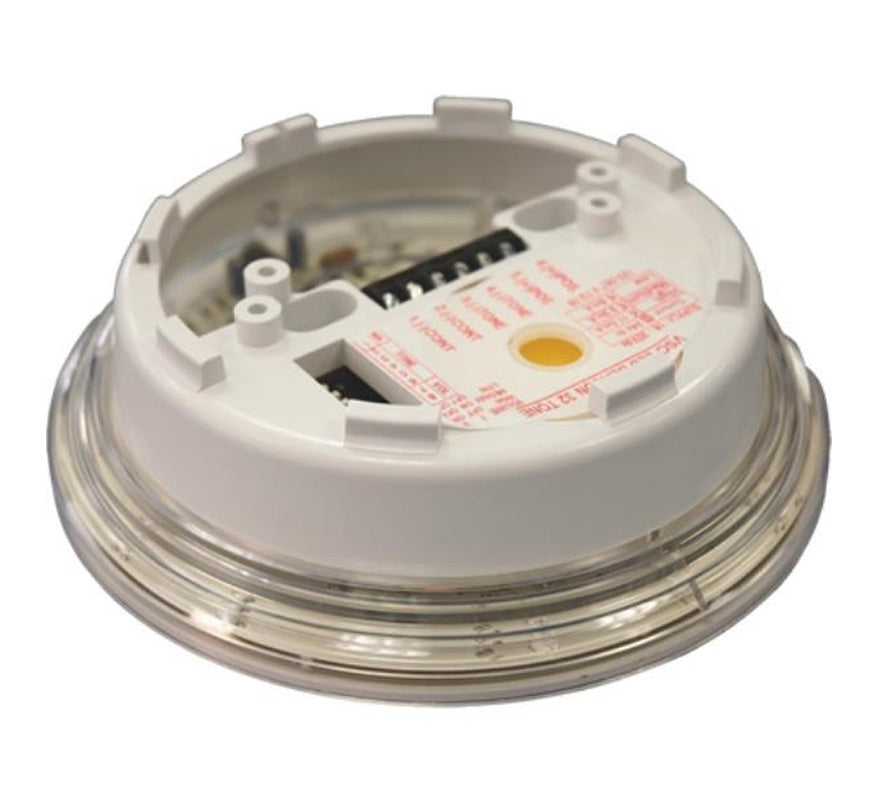

The Hochiki CSBB-E is a conventional platform-type sounder beacon base in an ivory case, designed to complement the CDX range and accept a CDX detector mounted with an appropriate base. It combines a sounder with a high-intensity LED beacon, has very low current consumption and uses DIL switches to set the tone and one of three volume levels. The beacon is a supplementary indicator and is not EN 54-23 compliant.

Key features

• Robust design, easy to install
• Low current consumption
• Maximum 93 dB(A) at 1 m (tone 1)
• 32 user-selectable tones and 3 user-selectable volumes
• High-intensity LED beacon (supplementary indicator, non EN 54-23)
• Lockable cap available (CS/CAP)

Technical specifications

• Ordering code: CSBB-E (ivory)
• Sound output at 1 m, tone 1: 87 dB(A) low / 90 dB(A) medium / 93 dB(A) high
• Current consumption at 24 V DC: 8 mA low / 9.3 mA medium / 11.5 mA high
• Operating voltage: 18-30 V DC
• Number of tones: 32
• Operating frequency: 440-2900 Hz
• Ingress protection: IP42
• Operating temperature: -20 °C to +70 °C
• Compatible CDX bases: YBN-R/6, YBO-R/6PA, YBO-R/6R, YBO-R/6RN, YBO-R/6RS, YBN-R/6SK
• Compatible CDX detectors: SLR-E3N, DCD-AE3, DCD-CE3, DFJ-AE3, DFJ-CE3
• Colour / case material: ivory / ABS
• Weight: 110 g
• Dimensions: Ø116 x 25 mm (H)
