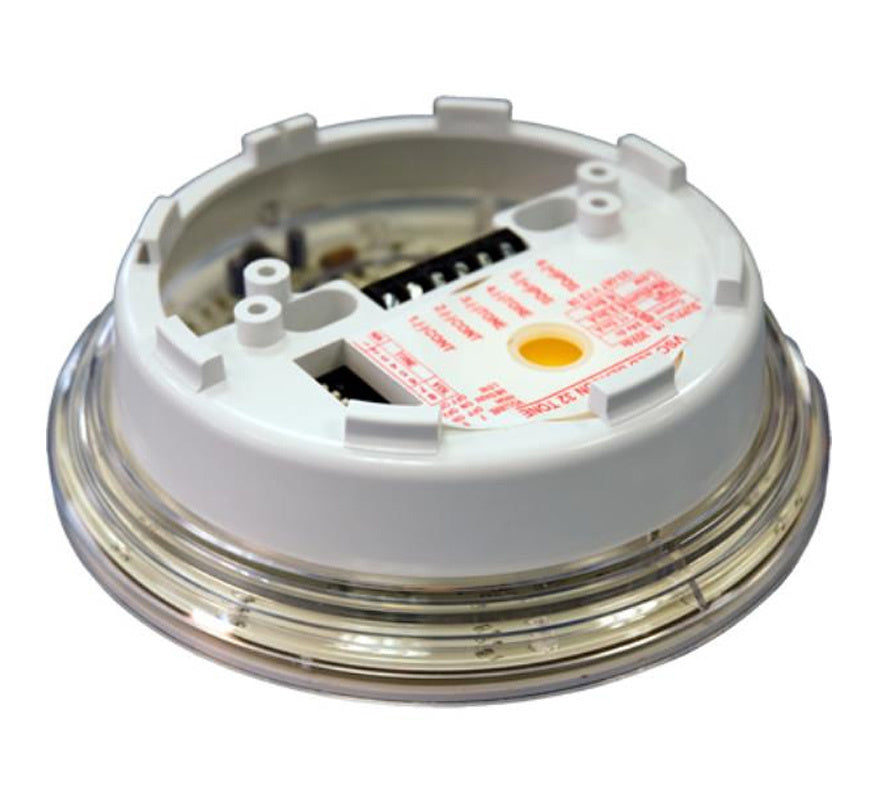

Hochiki CSBB-E(WHT) Conventional Sounder VID Beacon Base - White Case (non EN54-23 compliant)

The Hochiki CSBB-E(WHT) is a conventional base sounder with an integral LED beacon, in a white case, designed to complement the Hochiki CDX range of conventional detectors. It fits under a CDX detector mounted on a suitable base. Tone and volume are set with DIL switches on each unit. The beacon is a supplementary visual indicating device (VID) and is not EN54-23 compliant.

Key features

• Robust design, easy to install
• Low current consumption
• Maximum 93 dB(A) at 1 m (tone 1)
• 32 user-selectable tones and 3 user-selectable volume levels
• High-intensity LED beacon (supplementary indicator, not EN54-23 compliant)
• Lockable cap available (CS-CAP)

Technical specifications

• Ordering code: CSBB-E(WHT) (white)
• Sound output at 1 m, tone 1: 87 dB(A) low, 90 dB(A) medium, 93 dB(A) high
• Current consumption at 24 VDC: 8 mA low, 9.3 mA medium, 11.5 mA high
• Operating voltage: 18 to 30 VDC
• Number of tones: 32
• Operating frequency: 440 to 2900 Hz
• Ingress protection: IP42
• Operating temperature: -20 °C to +70 °C
• Compatible CDX bases: YBN-R/6, YBO-R/6PA, YBO-R/6R, YBO-R/6RN, YBO-R/6RS, YBN-R/6SK
• Compatible CDX detectors: SLR-E3N, DCD-AE3, DCD-CE3, DFJ-AE3, DFJ-CE3
• Case material: ABS
• Weight: 110 g
• Dimensions: Ø116 x 25 mm (H)
