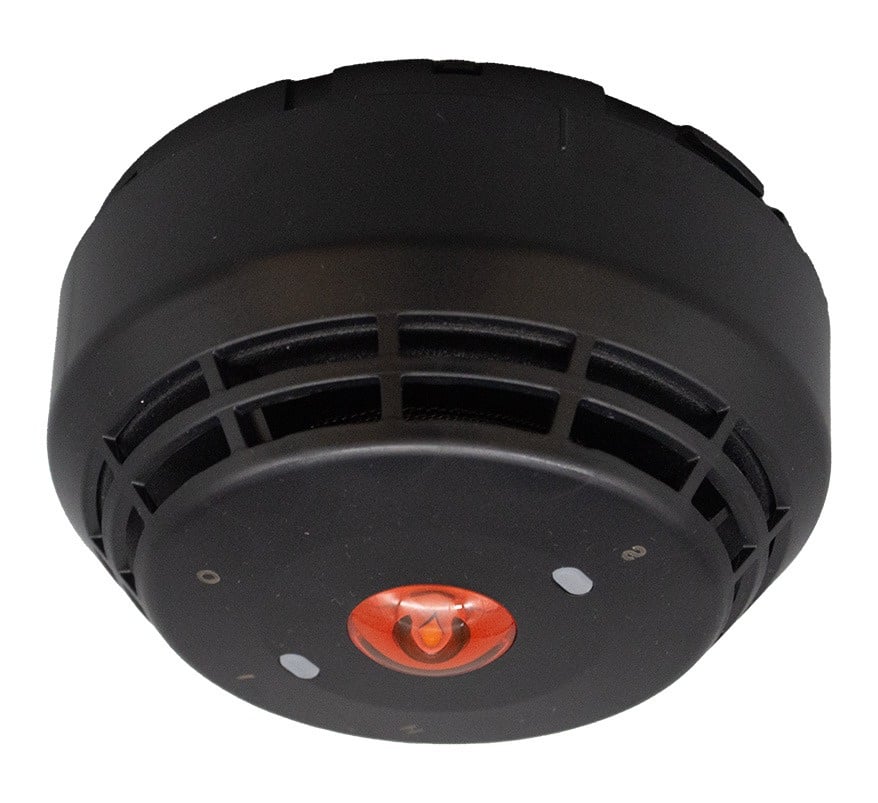

The Kidde KE-DP3121B-SNV is an intelligent addressable dual optical/heat multisensor detector with a built-in sounder, visual alarm device (VAD) and loop short-circuit isolator, from the Kidde Excellence Series, finished in graphite black. It detects fire and gives audible and visual warning from one ceiling device, fitting the Excellence Series standard base. It is designed for Kidde Commercial Excellence fire systems and is certified to EN 54-3, EN 54-5, EN 54-7, EN 54-17 and EN 54-23.
Key features
- Detector, sounder and VAD in one loop-powered device
- Integrated loop short-circuit isolator
- Short-circuit isolation on the remote indicator output
- Nuisance alarm, steam and dust discrimination for strong false-alarm immunity
- Static and rate-of-rise temperature detection
- Regular automatic self-testing
- Tri-colour indicators for alarm, pre-alarm, isolation, fault, ItsMe and communications, visible through 360°
- Mechanical rotary switch addressing
- On-board event log for diagnostics
- 32 selectable multi-stage tones with 4 output levels and synchronisation
- Red VAD, user selectable up to C-3-9, with synchronised flash
Technical specifications
- Compatibility: Kidde Commercial Excellence systems; Excellence series standard base
- Alarm levels: 5 (selectable sensitivity)
- Power supply: loop powered, 17 to 29 VDC
- Communication voltage: 4 to 11 V pulsed
- Current consumption: 500 µA quiescent; under 40 mA in alarm (at 24 VDC, depending on notification level)
- Detection: forward and backward optical light scatter plus heat
- Particle sensitivity range: 0.1 to 0.25 dB/m ±20%
- Alarm temperature: +54°C minimum, +70°C maximum
- Coverage area: up to 57 m²
- Heat class (EN 54-5): A2S / A2R
- Test fires (ISO 7240): TF1, TF2, TF3, TF4, TF5, TF8, TF9
- Installation height: up to 3 m
- Sounder output: 51 to 99 dB(A) depending on tone; 32 tones; 3 stages; 4 output levels
- VAD: red, up to C-3-9; floor coverage up to 40 m²; flash rate 0.5 Hz (one flash every 2 s)
- Remote indicator output: less than 8 mA
- Isolator: negative line break; isolation and reconnect voltage 14 to 15.5 VDC; switch current 1.05 A continuous, 1.4 A pulsed; up to 32 devices between isolators
- Dimensions: 100 x 54 mm (diameter x height)
- Weight: 205 g
- Colour: graphite black (RAL 9011); PC/ABS body, brass contacts
- Operating temperature: −10 to +55°C; storage −30 to +75°C
- Relative humidity: 10 to 93% non-condensing
- Environment: indoor, IP21C
- Standards: EN 54-3, EN 54-5, EN 54-7, EN 54-17, EN 54-23 (CPR certified); BOSEC mark
