Nittan Evolution Addressable Loop Powered Base Sounder (EV-SDR_Base)
SKU: EV-SDR_BaseBrand: Nittan
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Nittan Evolution Addressable Loop Powered Base Sounder (EV-SDR_Base)
£42.90
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Loop-powered addressable sounder base
- 12 tones selected by DIP switch (3 approved tones)
- Evolution FSK protocol
- EEPROM addressed with a programmer
- Replaces the EV-ABS sounder
Frequently bought together
Nittan
Nittan Evolution Addressable Manual Call Point (EV-MCP2-IP24)
Sale price£32.35
Out of stock. Lead time 2 to 6 weeks, estimate only
Nittan
Nittan Evolution Addressable Manual Call Point with Short Circuit Isolator (EV-MCP2-SCI-IP24)
Sale price£34.35
Out of stock. Lead time 2 to 6 weeks, estimate only
Nittan
Nittan Evolution Addressable Optical Smoke & Heat Multisensor (EV-PYH)
Sale price£38.40
Out of stock. Lead time 2 to 6 weeks, estimate only
Nittan
Nittan Evolution Addressable Optical Smoke Detector & Sounder (EV-PYS)
Sale price£39.60
In stock
Nittan
Nittan Evolution Addressable Optical Smoke Detector (EV-PY)
Sale price£35.10
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

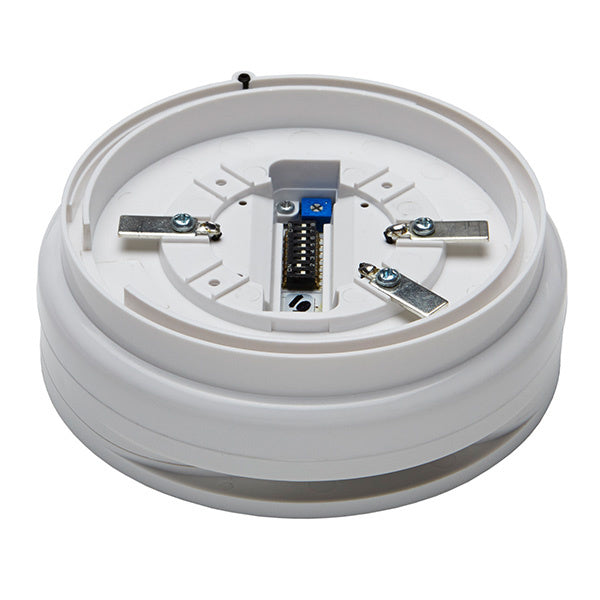

The Nittan EV-SDR Base (part no. F16-82100) is an analogue addressable, loop-powered sounder base for Nittan Evolution fire alarm systems. It is a Type A indoor sounder base and replaces the earlier EV-ABS sounder.
It uses the Evolution FSK protocol and is EEPROM addressed with a programmer.
Key features
- Loop-powered addressable sounder base
- 12 tones selected by DIP switch (3 approved tones)
- Evolution FSK protocol
- EEPROM addressed with a programmer
- Replaces the EV-ABS sounder
Technical specifications
- Sounder: piezo, 73 to 88 dB(A) at 90° / 1 m
- Tones: 12, selected by DIP switch (3 approved)
- Operating voltage: 24 to 38 V DC (35 V DC system voltage)
- Quiescent current: 200 µA
- Sounder operating current: 4 mA (low), 6 mA (high)
- Operating temperature: -10°C to +55°C
- Relative humidity: up to 95% RH, non-condensing
- Ingress protection: IP21C
- Addressing: soft addressing, non-volatile EEPROM
- Material: ABS
- Dimensions: Ø115 x 37.6 mm
- Mass: 200 g
- Standard: EN 54-3:2001 + A1:2002 + A2:2006
- Manufacturer part number: F16-82100
