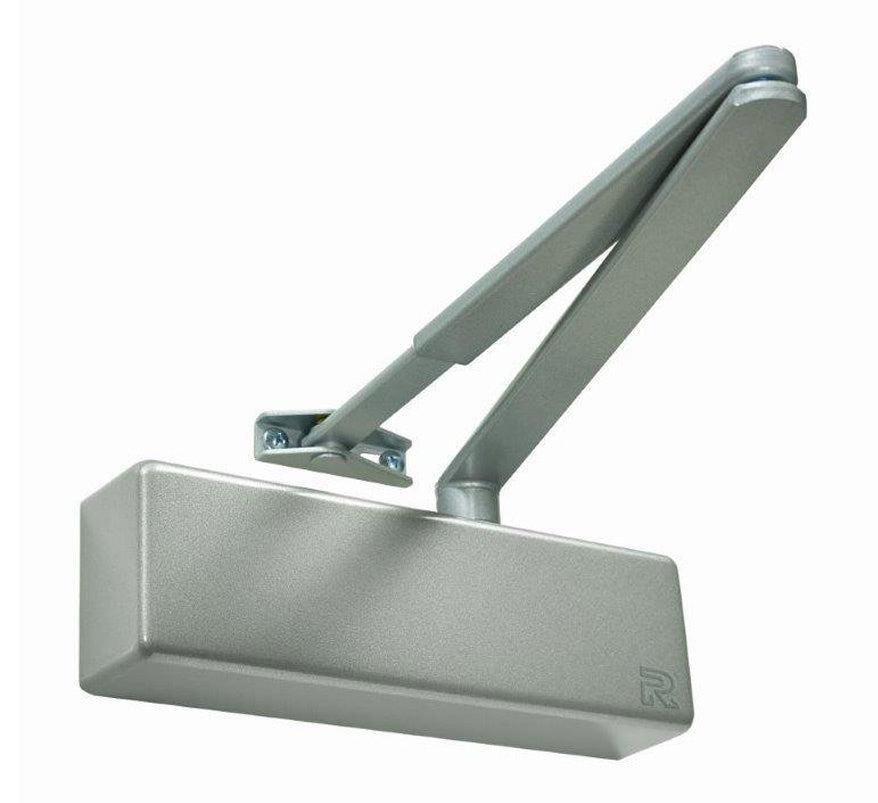

The Rutland TS.3204 is a Certifire-approved, surface-mounted scissor arm overhead door closer in a silver finish (TS.3204.SLFB.SESE). It uses a rack-and-pinion mechanism for reliable closing strength and long service life, and is ideal for mid-range contracts on single and double-leaf doors, including timber fire doors from FD30 to FD120. Power is fixed at size EN3 or EN4, selected by the fitting template.
Key features
- Fixed power size EN3 or EN4, set by template
- Rack-and-pinion mechanism, tested to over 500,000 closing cycles
- Third-party certified by Certifire (CF6018) and Secured by Design
- Fire tested to BS EN 1634-1; forms part of a wide range of leading fire doorsets
- Third-party tested to BS EN 1154 and CE marked up to power size 4; UKCA marked
- Universal fitting: pull side (standard arm) or push side (parallel arm)
- Easy-to-follow template fitting instructions
Technical specifications
- Product code: TS.3204.SLFB.SESE
- Power size: EN3 or EN4, selected by template
- Maximum door weight: 80 kg
- Door width: 300-1100 mm pull side (Fig. 1); 470-950 mm push side (Fig. 66)
- Opening angle: up to 180° (pull side, Fig. 1)
- Fire rating: 30-120 minutes (FD30 to FD120 timber doors)
- Dimensions (including cover): 250 x 66 x 43 mm (W x H x D)
- Corrosion grade 3: recommended for internal use
- Finish: silver
- Certification: Certifire CF6018, CE 1812, UKCA, BS EN 1154, BS EN 1634-1
