| Application/Usage |
Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls and more |
| Data Transfer Rate |
3Gbps |
| Depth |
154.0mm |
| Features |
2.5GBASE-T compliant; Auto-sensing technology; Converts a non-PoE port to a PoE+ 2.5G port; IEEE 802.3af and 802.3at compliant; Integrated power supply; NDAA / TAA compliant (U.S. and Canada only); Network a PoE device up to 100m (328 ft.); Save on installation and equipment costs; Supplies PoE (15.4W) or PoE+ (30W); Wall-mount design |
| Height |
36.0mm |
| Input Ports |
1 x 2.5GBASE-T port (data) |

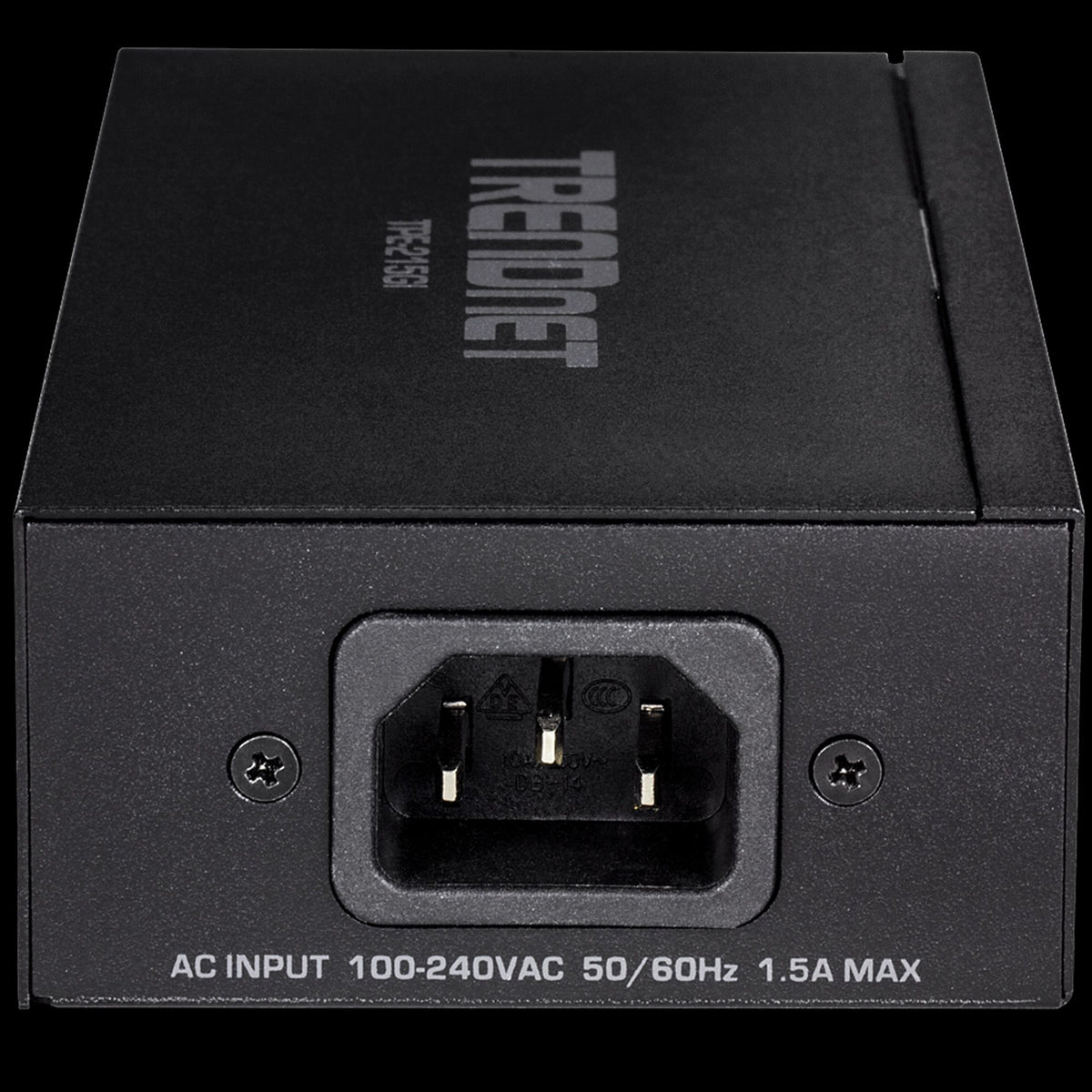

| Input Voltage |
100-240V AC |
| Limited Warranty |
3-Year |
| Material |
Metal |
| Maximum Data Transfer Rate |
2Gbps |
| Maximum Operating Distance |
100m |
| Mount Type |
Wall Mount |
| NDAA Compliant |
Yes |
| Number of Network (RJ-45) Ports |
2 |
| Output Ports |
1 x 2.5GBASE-T PoE+ port (data + power) |
| Output Power |
30W |
| Package Contents |
Power Cord; Quick Installation Guide; TPE-215GI |
| PoE (RJ-45) Port |
Yes |
| PoE Budget |
30W |
| Power Consumption |
0W |
| Power Source |
AC Power |
| Product Series |
Version V1 |
| Product Type |
Power Injector |

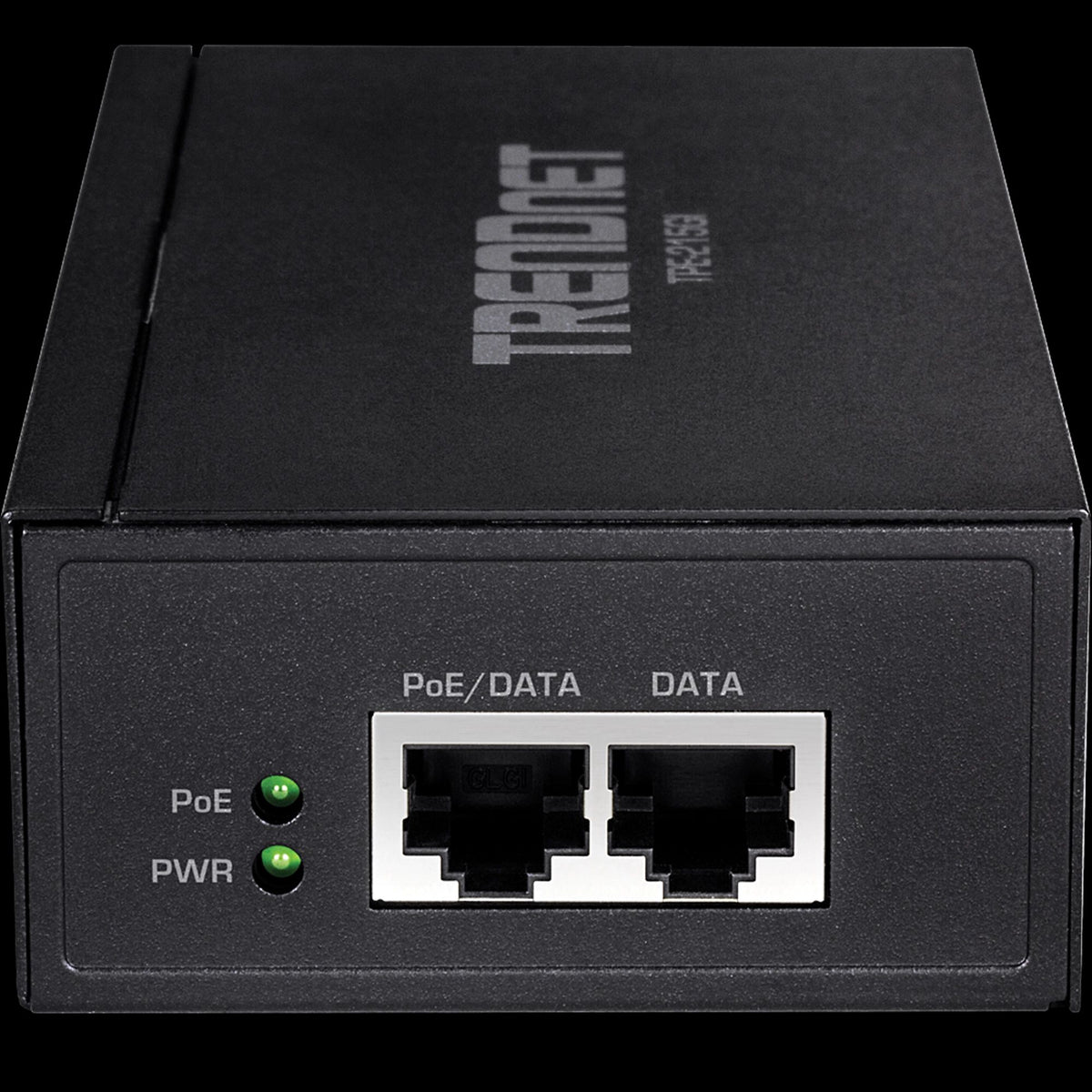

| Status Indicators |
Network connectivity; PoE |
| TAA Compliant |
Yes |
| Total Number of Network Ports |
2 |
| Weight |
386.00g |
| Width |
73.0mm |
| Maximum Operating Temperature |
40°C |
| CE Marking |
Yes |
| Certifications & Standards |
CE; ETL; FCC; IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3bz; IEEE 802.3u |
| Dimensions |
154mm x 73mm x 36mm |
| Maximum Input Current |
1A |
| Maximum Transfer Distance |
100m |
| Minimum Input Current |
1A |
| Minimum Operating Temperature |
0°C |
| Number of Ethernet Ports |
2 |
| Operating Relative Humidity (H-H) |
90% (Non-condensing) |
| Operating Temperature (T-T) |
0-40°C |
| Power over Ethernet (PoE) |
Yes |
| RoHS Compliant |
Compliant |
| WEEE Compliant |
Out of Scope |
