Zeta Infinity8 8 Zone Conventional Fire Alarm Panel (IN8)
£214.20
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 8 conventional zones
- Password access, so there are no keys to lose
- One-man test facility
- Disablement of zones and sounders
- Sounder delay option (0–10 minutes in 1-minute steps)
- 4 sounder circuits; circuits 3 and/or 4 can be configured as auxiliary 24 V supplies
Frequently bought together
Zeta
Zeta Intrinsically Safe Optical Smoke Detector (ZIS-OSD)
Sale price£234.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Zeta
Zeta Maxitone MKII Addressable Sounder Beacon (MKII-AMTSF/R)
Sale price£77.15
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Zeta
Zeta Polycarbonate Cover for CP4 & ID2 Manual Call Points (CP4-CV)
Sale price£2.80
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Zeta
Zeta Raptor Conventional IP65 Weatherproof Sounder (Red) (ZRP/R)
Sale price£35.20
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Zeta
Zeta Raptor Conventional IP65 Weatherproof Sounder (White) (ZRP/W)
Sale price£35.20
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

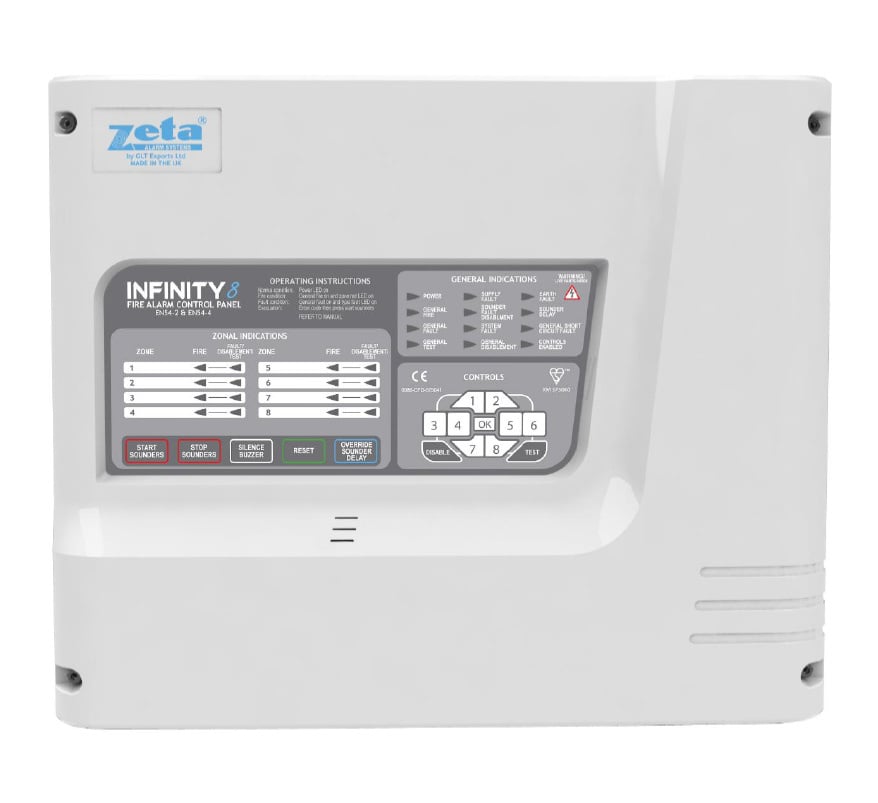

The Zeta Infinity 8 IN8 is an 8-zone conventional fire alarm control panel designed to meet EN 54 parts 2 and 4. It is housed in a modern flame-retardant ABS enclosure with a switch-mode power supply and a fully removable front cover for easy cable installation. A metal back box version that takes batteries up to 7 Ah is available as IN8/M.
Key features
- 8 conventional zones
- Password access, so there are no keys to lose
- One-man test facility
- Disablement of zones and sounders
- Sounder delay option (0–10 minutes in 1-minute steps)
- 4 sounder circuits; circuits 3 and/or 4 can be configured as auxiliary 24 V supplies
- Remote sounder operation via N/O contact on class change
Technical specifications
- Part number: 37-654
- Mains voltage: 230 V AC +10% / -15% at 50/60 Hz
- System voltage: 24 V DC nominal; zone voltage 21 V DC nominal
- Sounder outputs: 4 x 150 mA at 24 V DC
- Fault relay: 1 x volt-free, SELV at 1 A max
- Zone capacity: 32 devices per zone
- Zone end of line: 1N4002 diode; sounder end of line: 10K resistor
- Charger voltage: 27.6 V; battery cut-off below 20 V
- Battery space: 2 x 3.4 Ah 12 V sealed lead acid
- Enclosure size: 371 x 302 x 93 mm
- Weight: 3 kg (excluding batteries)
Datasheet
Zeta Infinity8 8 Zone Conventional Fire Alarm Panel (IN8) Need the datasheet? Our team will email it to you. Request datasheet
