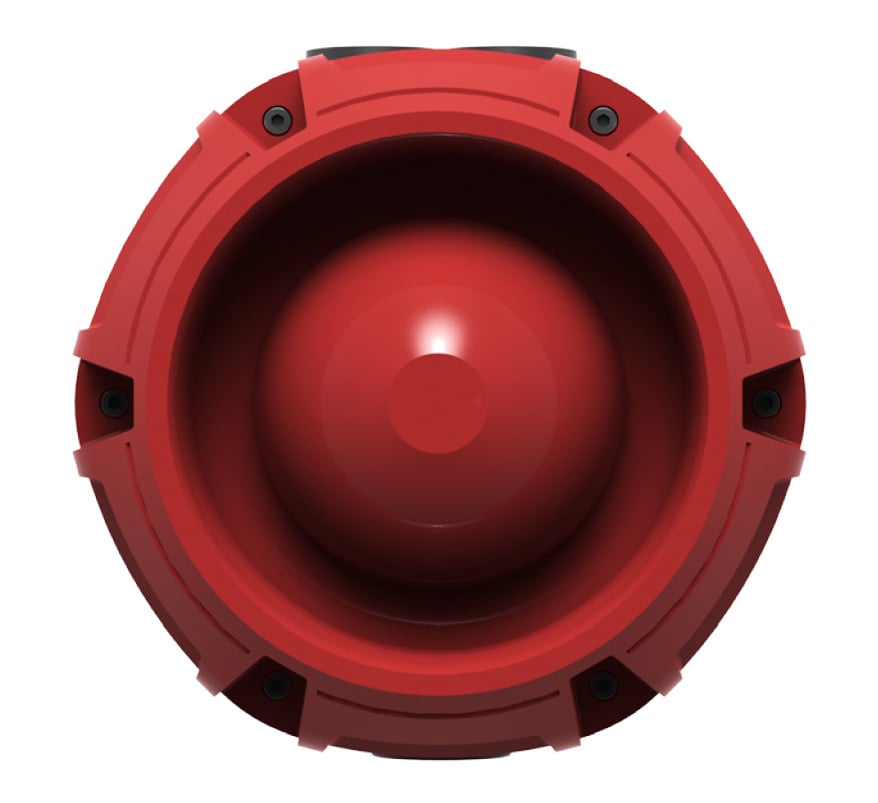

The Zeta Raptor ZRP/R is a large red weatherproof horn sounder for conventional fire alarm systems, suitable for many indoor and outdoor applications. It meets EN54 part 3 Type B, offers 22 site-selectable tones and terminates field wiring at the back box for a clean first fix.
Key features
- Complies with EN54 part 3, Type B (outdoor)
- 107dB ±3dB @ 1m sound output
- 22 site-selectable tone patterns
- IP65 rating (certified to IP33C)
- Surface mounting only
- Housed in UL V0 flame retardant ABS
- 3 x 20mm cable entries (2 top, 1 bottom)
Technical specifications
- Part number: 42-630
- Body colour: Red
- Voltage: 17-30V DC
- Current: 10mA @ 30V DC
- Sound output: 107dB ±3dB @ 1m (Tone 0, 800Hz/970Hz)
- Operating temperature: -25°C to +70°C
- Size: 150 x 146 x 98mm
- Weight: 540g
