Zeta SmartConnect Multi-Loop Conventional Zone Monitor (6 Circuits) (SCM-ZMM)
SKU: SCM-ZMMBrand: Zeta
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Zeta SmartConnect Multi-Loop Conventional Zone Monitor (6 Circuits) (SCM-ZMM)
£177.40
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 6 conventional zones
- Each zone monitored for open and short circuit
- Each zone configurable as alarm or technical alarm
- Designed to EN54 part 2
- Front LEDs for active, short, wire break and communication
- Quick to install: plugs into the panel with an RJ45 cable (cable supplied)
Frequently bought together
Zeta
Zeta SmartConnect Multi-Loop Input Module (6 Inputs) (SCM-MIM)
Sale price£177.40
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Multi-Loop Multi-Relay Output Module (SCM-RM)
Sale price£157.30
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Multi-Loop RS232 Printer Module (SCM-PM)
Sale price£157.30
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Multi-Loop RS485 Network Module (SCM-NM)
Sale price£314.65
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta SmartConnect Multi-Loop Touchscreen Repeater Panel (SMART/REP)
Sale price£585.70
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

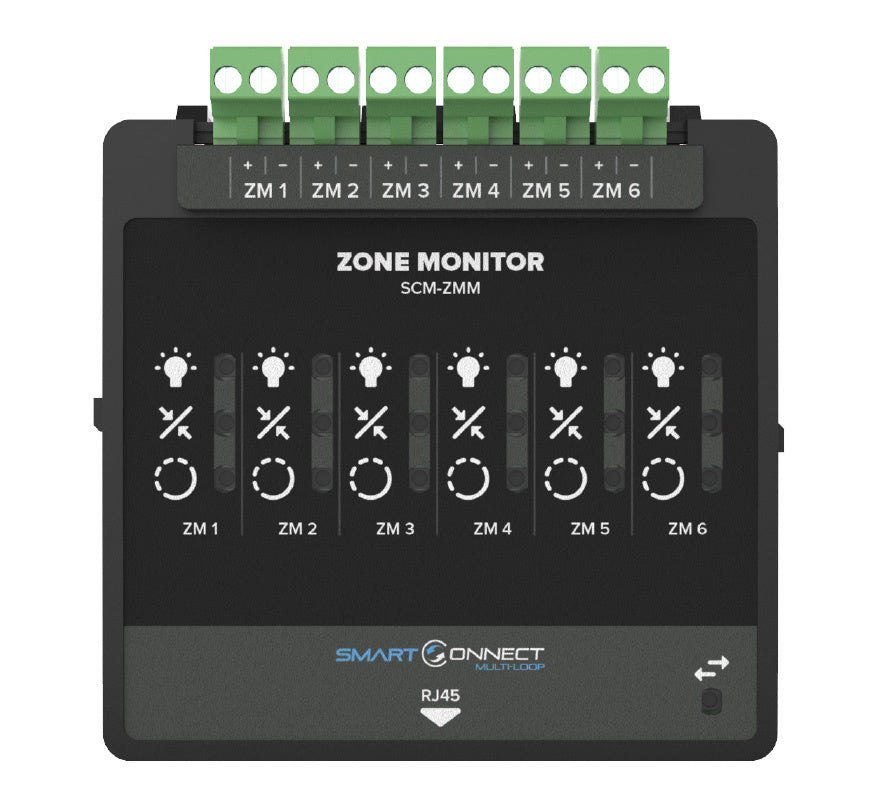

The Zeta SCM-ZMM is a six-way conventional zone monitor module for the Zeta SmartConnect Multi-loop fire alarm panel. It is DIN mounted inside the panel and powered and connected via RJ45. The six conventional zones can be used for conventional devices or for special detectors not available in addressable form, such as UV flame, aspirating and beam detectors. Each zone reports normal, open, short or alarm status and can be programmed as an alarm or technical alarm input.
Key features
- 6 conventional zones
- Each zone monitored for open and short circuit
- Each zone configurable as alarm or technical alarm
- Designed to EN54 part 2
- Front LEDs for active, short, wire break and communication
- Quick to install: plugs into the panel with an RJ45 cable (cable supplied)
Technical specifications
- Part number: 62-403
- Approval: LPCB
- Circuit voltage: 26V DC nominal (17.5V to 26.5V with EOL connected)
- Zone maximum current (short circuit): 56mA
- Zone maximum line impedance: 10Ω
- End of line resistor: 4K7Ω; trigger resistor 1KΩ
- Compatible devices: MKII conventional detectors and call points
- Maximum devices per loop: 20
- Operating temperature: 0°C to 49°C; humidity 93% non-condensing
- Size: 103 x 97 x 46mm (H x W x D); weight 0.2kg
- Recommended cable: 0.3mm² to 2.5mm²
