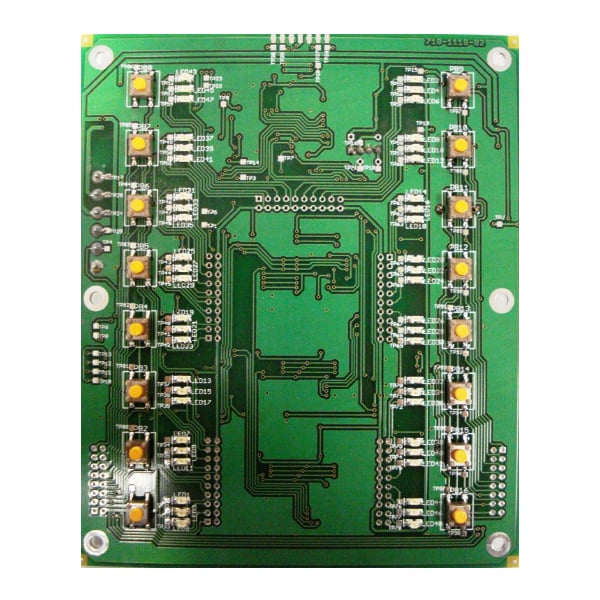

Advanced MXP-538 P-Bus Switch/LED Module - 16 Switches, 3 programmable LEDs/switch (RYG)

The Advanced MXP-538 is the 16-way Switch & 48 LED Card, an expansion peripheral for MxPro 5 fire alarm control panels. It provides 16 individually programmable push buttons, each with three LEDs (red, yellow and green), for controlling fire alarm equipment such as evacuation and plant control functions.

Inputs and outputs are configured with the Advanced PC Config Tool. Each LED output can be assigned to an output group, giving full support for dynamic zoning and showing when buttons have been activated. Up to 16 cards can be connected to one MxPro 5 panel on the peripheral bus, for a maximum of 256 push buttons and 768 LED outputs.

Key features

• 16 configurable push buttons
• 48 programmable LEDs: 3 per button (red, green and yellow)
• Configurable buzzer
• Fast input response
• Up to 16 cards per MxPro 5 panel
• Supports dynamic zoning

Technical specifications

• Part code: MXP-538
• Power supply: 18-28V DC (e.g. from the panel 24V auxiliary supply)
• Supply current: 60mA maximum
• Inputs: 16 x push buttons, 1 x PSU monitor
• Outputs: 48 x LED indicators, 1 x buzzer
• Fault input: Volt free
• Temperature: 0°C to 49°C, indoor dry
• Humidity: 10-95% non-condensing
• Dimensions (H x W x D): 168 x 144 x 31mm
• Compatibility: All MxPro 5 panels; PC Config Tool v6.10 or later; panel software Mx-5000-050-07 or later
• Mounting: Must be mounted locally to its power supply
