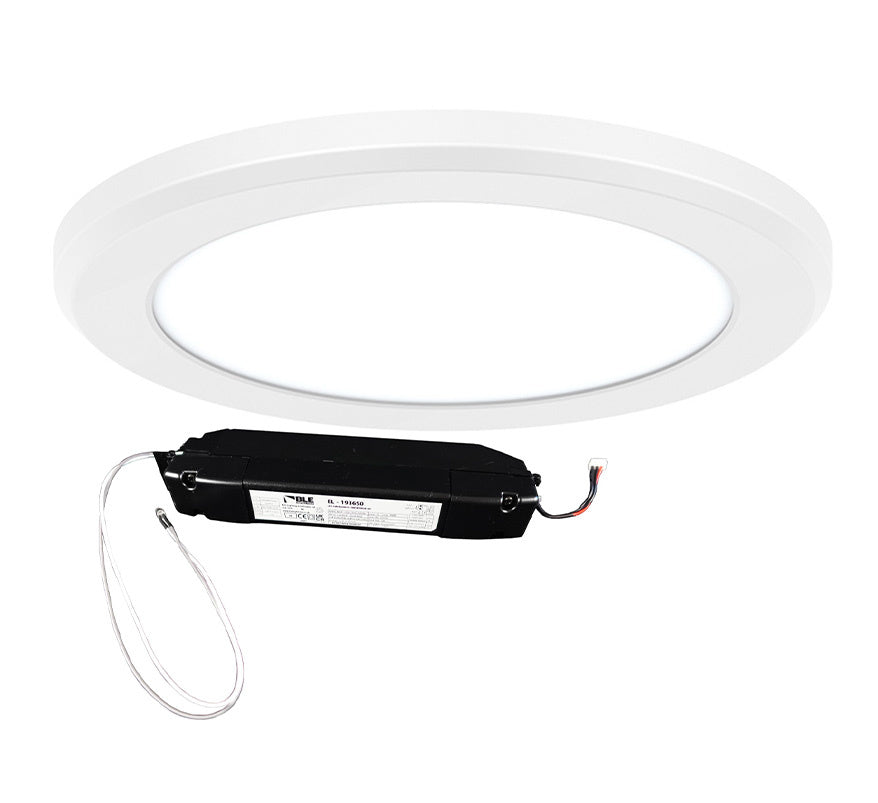

This BLE BROADFIELD kit combines the 235mm IP20 circular LED panel (EL-162601), with selectable 10W/13W/16W output and 3CCT colour temperature, with a BOWMAN LiFePO4 emergency conversion pack (EL-193650) designed for the BROADFIELD panel. Together they provide general lighting with 3 hours of emergency back-up if the mains supply fails.
Key features
- Adjustable bracket for semi-recessed installation, fits holes 65-205mm in diameter
- 3CCT: 3000K / 4000K / 5700K
- Adjustable wattage: 10W / 13W / 16W
- Even light output
- Slim design
- Over-voltage and short-circuit protection
- Ideal for retrofit applications
- Class II
- Remote BOWMAN emergency pack with green charge LED indicator
- 3-hour emergency duration
Technical specifications
- Panel part number: EL-162601
- Supply: 220-240V AC, 50Hz
- Power: 10/13/16W
- Power factor: 0.9
- Electrical class: Class II
- Light source: SMD LED
- Colour temperature: 3CCT (3000K/4000K/5700K)
- CRI: 80
- Beam angle: 120°
- Mains lumen output: 950-1800lm
- IP rating: IP20
- IK rating: IK06
- Housing: Polycarbonate
- Colour: White
- Mounting: Surface or Recessed
- Dimensions: Ø 235mm, D 16mm
- Cut-out: 65-205mm
- Weight: 476g
- Operating temperature: -20 to +40°C
- Lamp life: 50,000 hours
- Product warranty: 3 years
- Manufactured in accordance with: BS EN 60598-1
- Marking: CE and UKCA
- Emergency pack part number: EL-193650
- Emergency pack battery: LiFePO4 6.4V, 3.6Ah
- Emergency pack power: 5W
- Emergency pack output: 70-250V
- Emergency duration: 3 hours
- Emergency pack recharge time: 24 hours
- Emergency pack dimensions: L 270mm, W 68mm, D 42mm
- Emergency pack operating temperature: +5 to +35°C
- Emergency pack standard: EN 61347-2-7
