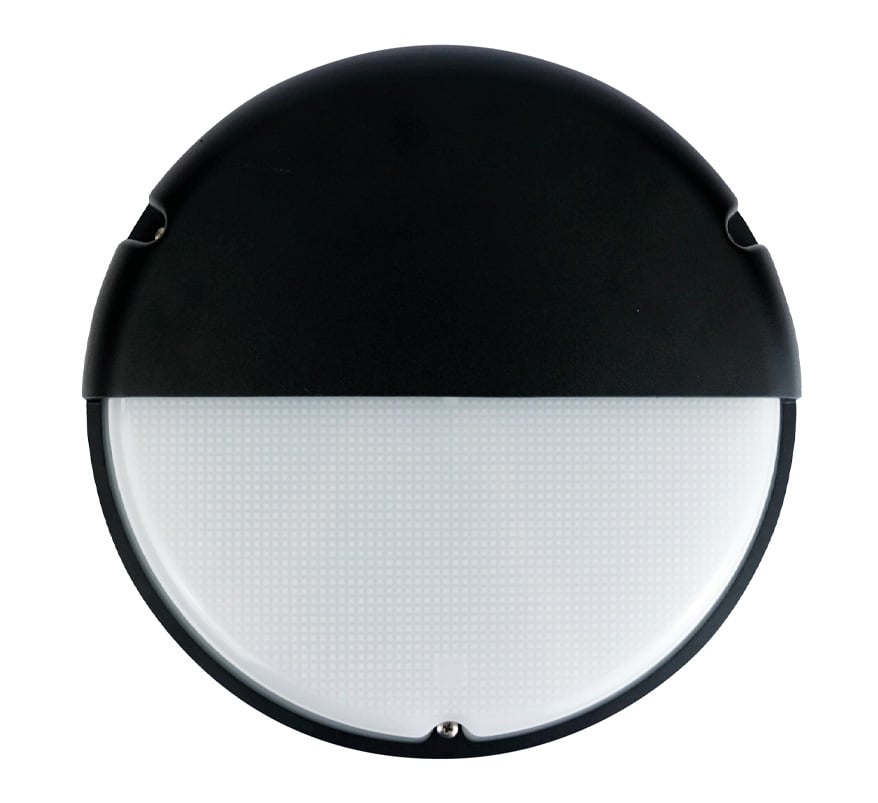

BLE DORE 15W IP65 Die-Cast Circular Emergency Amenity Light - Black (EL-120801-M3)

The BLE DORE EL-120801-M3 is an IP65, weatherproof LED amenity light with a 3-hour emergency function from a 6.4V LiFePO4 battery. It is a versatile, easy-to-install and easy-to-maintain fitting for a wide range of applications, with a black finish.

Key features

• High-quality die-cast aluminium base and hood
• Impact-modified polycarbonate opal diffuser
• Removable eyelid for flexibility during installation
• Reduced power consumption
• IP65 rated and weatherproof
• Emergency version, manual test

Technical specifications

• Part number: EL-120801-M3
• Supply: 220-240V AC, 50Hz
• Power: 15W
• Power factor: 0.94
• Electrical class: Class I
• Light source: LED
• Colour temperature: 3CCT
• CRI: 70
• Beam angle: 110°
• Mains lumen output: 550 / 1090lm (eyelid/non-eyelid)
• Emergency lumen output: 90 / 180lm (eyelid/non-eyelid)
• Emergency duration: 3 hours
• Testing: Manual
• Battery: LiFePO4 6.4V, 1.0Ah, replaceable
• Recharge time: 24 hours
• IP rating: IP65
• IK rating: IK10
• Housing: Die-cast aluminium
• Diffuser: opal polycarbonate
• Colour: Black
• Mounting: Surface
• Dimensions: Ø 330mm, D 97mm
• Weight: 3208g
• Operating temperature: 0 to +40°C
• Lamp life: 50,000 hours
• Product warranty: 10 years
• Battery warranty: 10 years
• Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
• Marking: CE and UKCA
