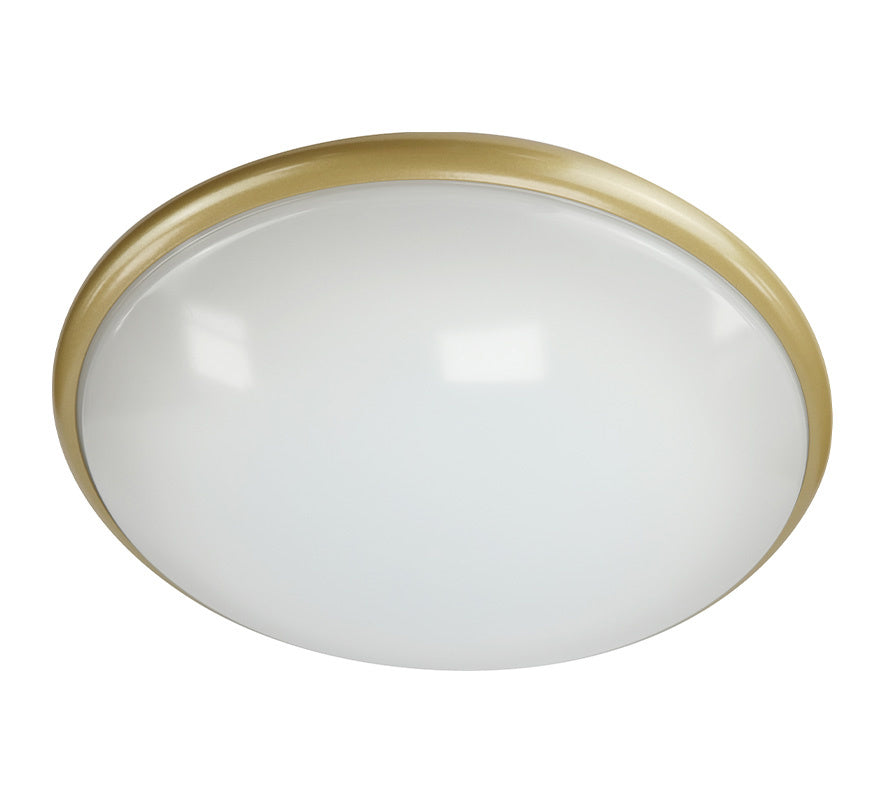

The BLE CHELSEA EL-121004-BR-M3-MW is a large, 425mm low-profile circular LED amenity light with a brass finish, an integral microwave sensor and a 3-hour emergency function. Its modern decorative design suits indoor communal areas, corridors and reception spaces, with a replaceable LiFePO4 battery providing emergency lighting if the mains supply fails.
Key features
- Modern, low-profile decorative design
- High-quality metal housing
- Impact-modified polycarbonate opal diffuser
- Reduced power consumption
- Integral microwave presence sensor
- 3-hour emergency version
- 3CCT selectable colour temperature
Technical specifications
- Part number: EL-121004-BR-M3-MW
- Supply: 220-240V AC, 50Hz
- Power: 15W
- Power factor: 0.94
- Electrical class: Class I
- Light source: LED
- Colour temperature: 3CCT
- CRI: 70
- Beam angle: 120°
- Emergency duration: 3 hours
- Testing: Manual
- Battery: LiFePO4 6.4V, 1.0Ah, replaceable
- Recharge time: 24 hours
- Sensor: Microwave Sensor
- Maximum mounting height: 3.5m
- Detection area: 8m at 2.5m high
- Daylight threshold: 10 lux to 500 lux
- IP rating: IP20
- Housing: Powder Coated Aluminium
- Diffuser: opal polycarbonate
- Colour: Brass
- Mounting: Surface
- Dimensions: Ø 425mm, D 110mm
- Weight: 2200g
- Operating temperature: 0 to +40°C
- Lamp life: 50,000 hours
- Product warranty: 10 years
- Battery warranty: 10 years
- Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
- Marking: CE and UKCA
