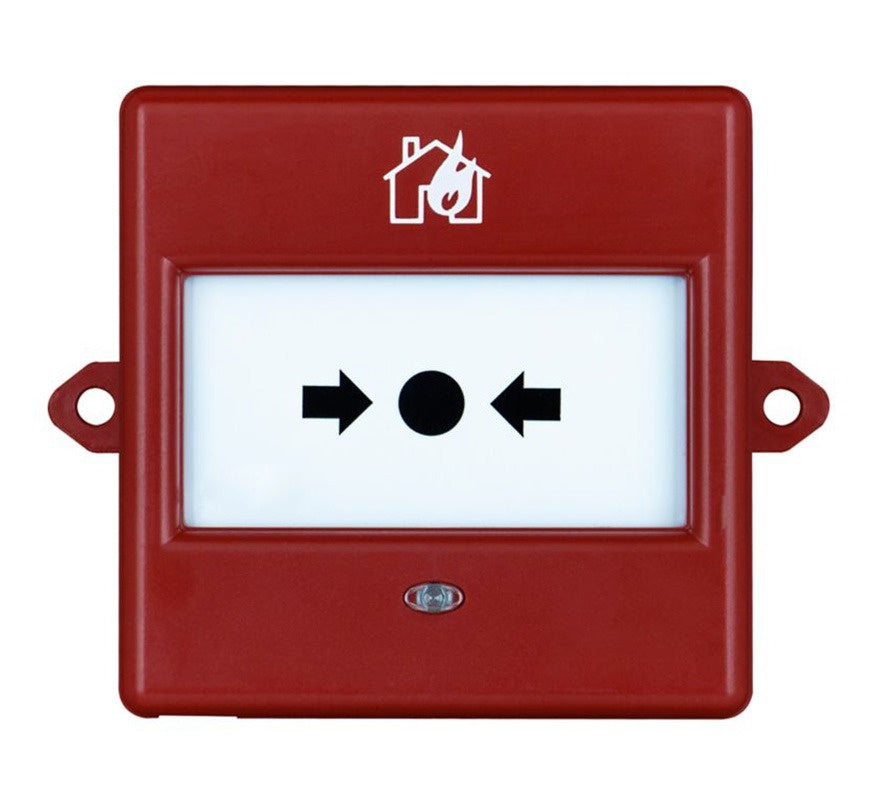

Eaton Cooper Intelligent Addressable Weatherproof Manual Call Point (CBG370WP)

The Eaton Cooper CBG370WP is an intelligent addressable manual call point for weatherproof use, compatible with Eaton intelligent addressable fire alarm systems. It is certified to EN 54-11 and includes an integral short circuit isolator, so it takes a single loop address with no need for additional isolator modules.

The weatherproof version is rated IP65. It is supplied as standard with a frangible glass element and a test key; the fast-fit front cover locks in place and can only be removed with the key, which also lets the engineer test the call point without breaking the glass.

Key features

• Soft addressed; single address
• Integral short circuit isolator
• High visibility status LED
• Fast-fit self-locking front cover, removed only with the supplied key
• Dual-function test key for testing and cover removal, inserted at the bottom for easy access beside door frames
• Heavy duty terminals with separate loop in and loop out connections, including screen continuity
• Accessories available: protective hinged cover (CXPC), resettable element kit (MBGREKIT), spare glasses (UBSG) and keys (MFBGKEY3)

Technical specifications

• Catalogue number: CBG370WP
• Standards: EN 54-11 (manual call point), EN 54-17 (short circuit isolator)
• Operating voltage: 17V to 32V DC
• Quiescent current: Less than 250µA
• Operating temperature: -10°C to +55°C
• Humidity: 0 to 93% RH, non-condensing
• Construction: PC/ABS, red
• Dimensions (H x W x D): 87 x 87 x 59mm
• Weight: 0.2kg
• Ingress protection: IP65
