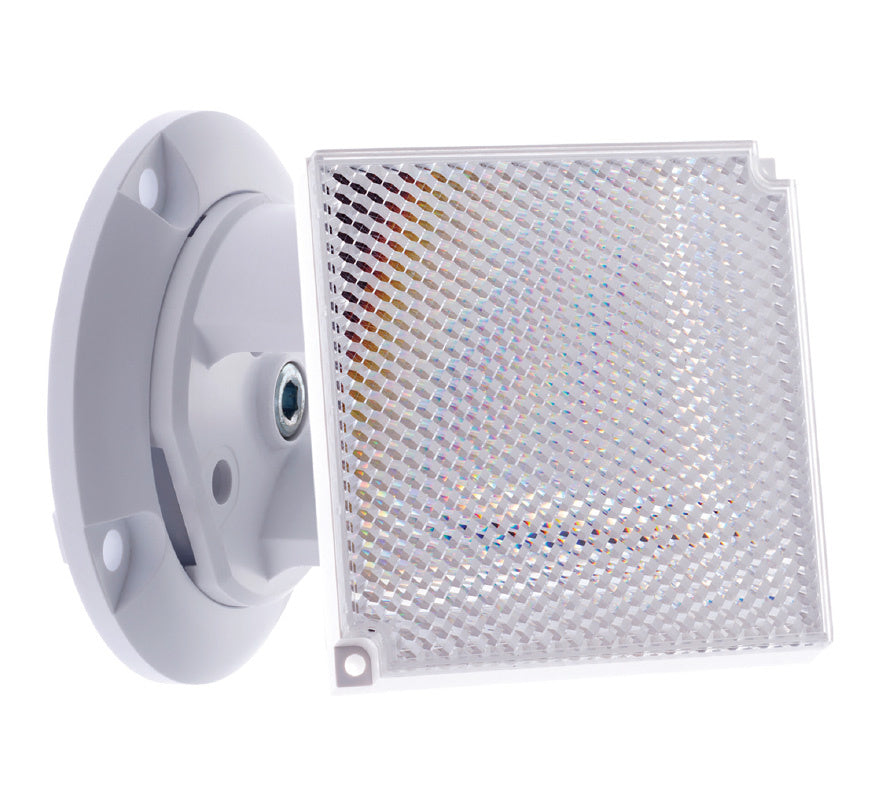

The FFE Fireray Prism Adjustment Bracket (1040-000) is an adjustable bracket for mounting a single Fireray reflector prism, so the reflector can be set square to the beam. FFE lists it as an accessory for the Fireray One and Fireray Hub Reflective beam detectors.
For long-range installations using four reflectors, FFE offers the Prism Adjustment Bracket (Long Range), part number 1050-000.
Key features
- Adjustable mounting for a single reflector prism
- Listed by FFE for the Fireray One and Fireray Hub Reflective
- Genuine FFE Fireray accessory
Technical specifications
- Part number: 1040-000
- Reflector: single prism
- Fireray One single reflector size (for reference): 100 (H) x 100 (W) x 9 (D) mm
- Fireray One maximum angular misalignment of reflector: ±5°
