Global Fire VULCAN 2 Conventional Base Sounder Beacon & Lid (VULCAN2-CSB)

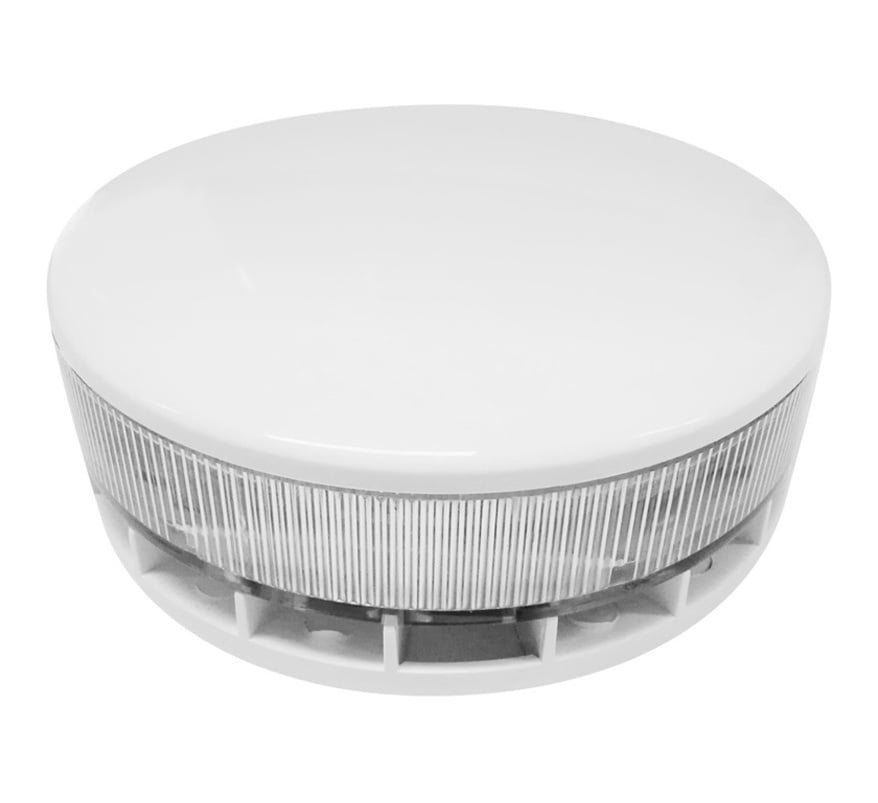

The Global Fire Equipment VULCAN 2 CSB is a conventional base sounder with beacon, listed here with its lid. It is a low-current device that can be used as an unobtrusive low-profile sounder beacon, or as a base sounder beacon fitted under a conventional detector, which cuts installation cost and keeps ceilings tidy.

It runs from the sounder circuits of conventional fire alarm panels.

Key features

• Combined sounder and beacon in a low-profile base
• Four tones, selected by jumpers
• Sound level adjustable with a potentiometer
• Can be used on its own with the lid, or under a conventional detector

Technical specifications

• Supply voltage: 20 V to 30 V DC
• Current (sounder/beacon): 3.3 mA for sweeping (800-1000 Hz), continuous (800 Hz) and alternating low (800-1000 Hz) tones; 6.0 mA for alternating high (2.7-3.2 kHz) tone
• Maximum sounder output: 98 dB at 1 m (30 V DC)
• Cable size: 0.5 to 2.5 mm²
• Operating temperature: -10°C to 55°C; humidity 95% RH non-condensing
• Case material: ABS with transparent PC
• Protection: IP21C, Type A indoor use
• Dimensions: 110 (D) x 29 (H) mm; 37.5 mm high with lid
• Weight: 149 g with lid
• Certification: 1328-CPR-0289
