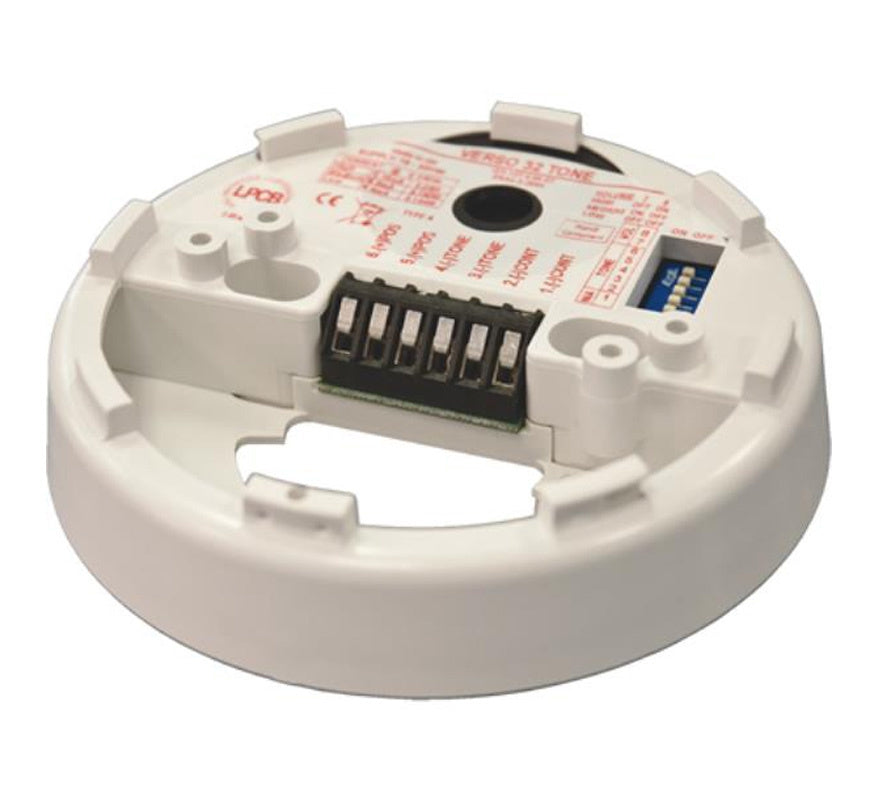

Hochiki CSB-E Conventional Sounder Base - Ivory Case
£33.85
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Robust design, easy to install
- Low current consumption
- Maximum 93 dB(A) at 1 m (tone 1)
- 32 user-selectable tones and 3 user-selectable volumes
- Lockable cap available (CS/CAP)
- Approved to EN 54-3
Frequently bought together
Hochiki
Hochiki CSB-E(WHT) Conventional Sounder Base - White Case
Sale price£26.45
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki CSBB-E Conventional Sounder VID Beacon Base - Ivory Case (non EN54-23 compliant)
Sale price£70.75
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki CSBB-E(WHT) Conventional Sounder VID Beacon Base - White Case (non EN54-23 compliant)
Sale price£70.75
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki CWSB-E Conventional Wall Sounder VID Beacon - Red Case (non EN54-23 compliant)
Sale price£57.65
In stock
Hochiki
Hochiki CWSB-E(WHT) Conventional Wall Sounder Beacon - White Case (non EN54-23 compliant)
Sale price£57.65
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details
The Hochiki CSB-E is a conventional platform-type sounder base in an ivory case that accepts a Hochiki CDX detector mounted with an appropriate base. Its electronics give very low current consumption with high sound output, and DIL switches set the tone and one of three volume levels (low, medium and high). It is approved to EN 54-3.
Key features
- Robust design, easy to install
- Low current consumption
- Maximum 93 dB(A) at 1 m (tone 1)
- 32 user-selectable tones and 3 user-selectable volumes
- Lockable cap available (CS/CAP)
- Approved to EN 54-3
Technical specifications
- Ordering code: CSB-E (ivory)
- Sound output at 1 m, tone 1: 86.2 dB(A) low / 87.7 dB(A) medium / 91.2 dB(A) high
- Current consumption at 24 V DC: 5.7 mA low / 7 mA medium / 9.4 mA high
- Operating voltage: 18-30 V DC
- Number of tones: 32
- Operating frequency: 440-2900 Hz
- Ingress protection: IP21C
- Operating temperature: -20 °C to +70 °C
- Compatible CDX bases: YBN-R/6, YBO-R/6PA, YBO-R/6R, YBO-R/6RN, YBO-R/6RS, YBN-R/6SK
- Compatible CDX detectors: SLR-E3N, DCD-AE3, DCD-CE3, DFJ-AE3, DFJ-CE3
- Colour / case material: ivory / ABS
- Weight: 110 g
- Dimensions: Ø116 x 25 mm (H)
- Base fixing centres: 48-74 mm
- Approvals: EN 54-3 by LPCB and VdS on tones 1, 3, 11, 25 and 27
