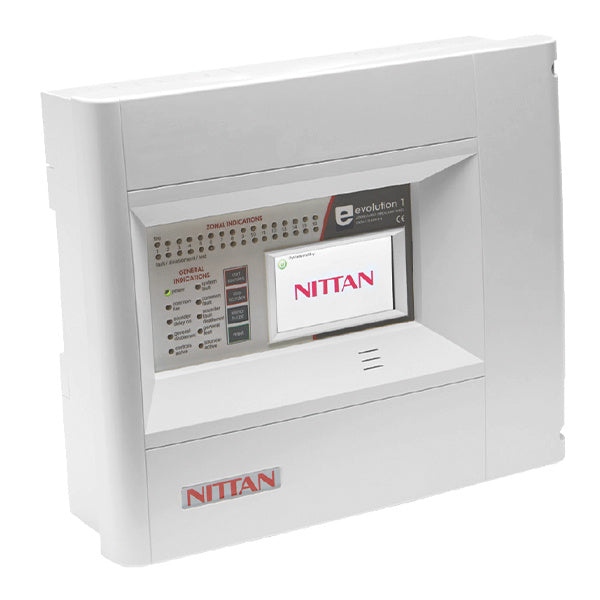

Nittan Evolution 1 Single Loop Touch-Screen Addressable Fire Alarm Panel (evolution1)

The Nittan evolution 1 (part no. F12-83101) is a single-loop analogue addressable fire alarm control panel with a 4.3-inch colour touch screen. It is fully compatible with the Nittan Evolution range of detection and alarm devices and is certified to EN 54-2 and EN 54-4.

Cause and effect can be set up on the panel itself or with the PC configuration tool and downloaded. A built-in network card lets you link up to 16 panels without extra hardware. The ABS enclosure has a fully removable front cover for easier cabling and termination.

Key features

• 4.3-inch colour touch screen with an intuitive menu
• Up to 254 devices on the loop and 254 zones
• Full cause-and-effect programming at the panel or with the PC configuration tool
• Built-in network card: network up to 16 panels
• 2 x configurable RS485 ports
• Up to 8 password-protected users
• Switch-mode power supply

Technical specifications

• Mains supply: 230 V AC (+10% / -15%), 50/60 Hz
• Operating current: 1.0 A max.
• System voltage: 24 V DC nominal
• Loop current: 500 mA
• Sounder outputs: 2 x 200 mA at 24 V DC
• Fault relay: 1 x volt-free, SELV, 1 A max.
• Charger voltage: 27.6 V DC
• Battery cut-off: 0.9 ohm
• Batteries: 2 x 7.0 Ah 12 V DC sealed lead acid max.
• Enclosure: W 370 x H 311 x D 113 mm
• Weight: 2.7 kg without batteries (7.35 kg with batteries)
• Standards: EN 54-2:1997 + A1:2006; EN 54-4:1997 + A1:2002 + A2:2006

Note: Nittan advises that panels with firmware 22.0.0 or newer cannot be networked with panels running firmware 21.09.05.20 or older.
