Nittan Evolution Addressable IP67 Weatherproof Manual Call Point with SCI (-ve isolator) (EV-MCP2-SCI-IP67)

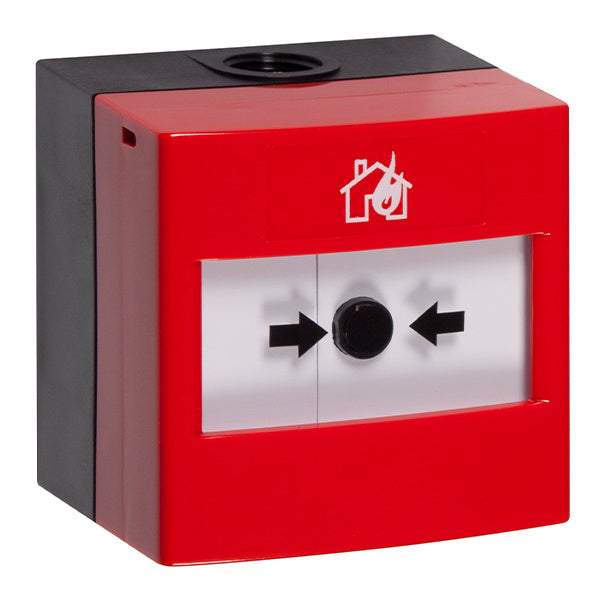

The Nittan EV-MCP2-SCI-IP67 (part no. F16-82205) is an analogue addressable outdoor manual call point for Nittan Evolution fire alarm systems. It sits in an IP67 weatherproof housing and has a built-in short circuit isolator on the negative line, which gives isolation protection for a zone.

The call point is DIL-switch addressed and supplied with an IP67 back box. The back box has knock-outs and M20 threads so cable glands are easy to fit. It resets with a dedicated key, and the isolator resets itself once a fault clears.

Key features

• Fully integrated -ve line short circuit isolator
• Self-resetting isolator when the fault clears
• Easily reset with a dedicated key
• DIL switch addressed
• Supplied with IP67 back box with knock-outs and M20 threads
• Red LED alarm indication

Technical specifications

• Call point type: Type A outdoor, non-frangible, resettable (microswitch operating element)
• Operating voltage: 20 to 38 V DC
• Quiescent current: 200 µA
• Alarm current: 2 mA (LED on)
• Current in short circuit: 13 mA
• Operating temperature: -25°C to +70°C
• Ingress protection: IP67
• Cable terminals: 0.75 to 2.5 mm²
• Material: PC
• Dimensions: 88 x 90 x 72 mm
• Weight: 280 g
• Standards: EN 54-11:2001 + A1:2005; EN 54-17:2005 / AC:2007
• Manufacturer part number: F16-82205

Note: Nittan states that +ve and -ve isolator styles cannot be mixed on one system, and that some third-party panels need the non-SCI model. Check panel compatibility with Nittan technical support before ordering.
