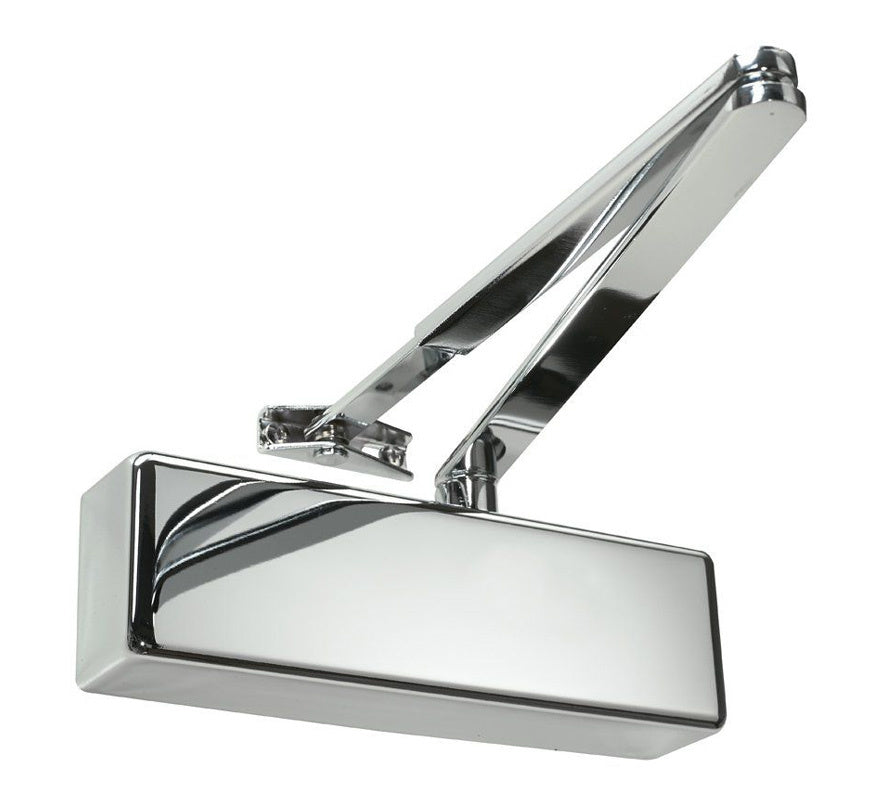

Rutland TS.3204 Power Size EN3/EN4 Overhead Door Closer - Polished Nickel Plate (TS.3204.SLFB.PNPPNP)

The Rutland TS.3204 (TS.3204.SLFB.PNPPNP) is a Certifire-approved, surface-mounted scissor arm overhead door closer in a polished nickel plate finish. It is designed for mid-range contracts and fits almost all common door types. It uses a rack-and-pinion mechanism for reliable closing strength and long service life, and has been tested to over 500,000 closing cycles.

The power size is set at EN3 or EN4 by template during fitting. It is fire tested in popular door cores and suits FD30 to FD120 timber fire doors up to 1100mm wide and 80kg. Rutland recommends it for lower-use doors where assisting BS 8300 compliance is not a requirement.

Key features

• Fixed power size EN3 or EN4, set by template
• Universal fitting: pull side (standard arm) or push side (parallel arm)
• Certifire approved (CF 6018), CE and UKCA marked
• Third-party tested to BS EN 1154 and fire tested to BS EN 1634-1
• Secured by Design certified
• Tested to over 500,000 cycles
• Easy-to-follow template fitting instructions

Technical specifications

• Product code: TS.3204.SLFB.PNPPNP
• Finish: polished nickel plate
• Power size: EN3 or EN4 (by template)
• Maximum door width: 1100mm (pull side 300–1100mm; push side 470–950mm)
• Maximum door weight: 80kg
• Opening angle: 180° (pull side)
• Delayed action / back check: no
• Hold open: optional mechanical (not for fire doors)
• Fire doors: FD30 to FD120 timber doors
• Dimensions (including cover): W 250 x H 66 x D 43mm
• Corrosion grade: 3 (recommended for internal use)
• Certification: Certifire CF 6018; CE 1812
