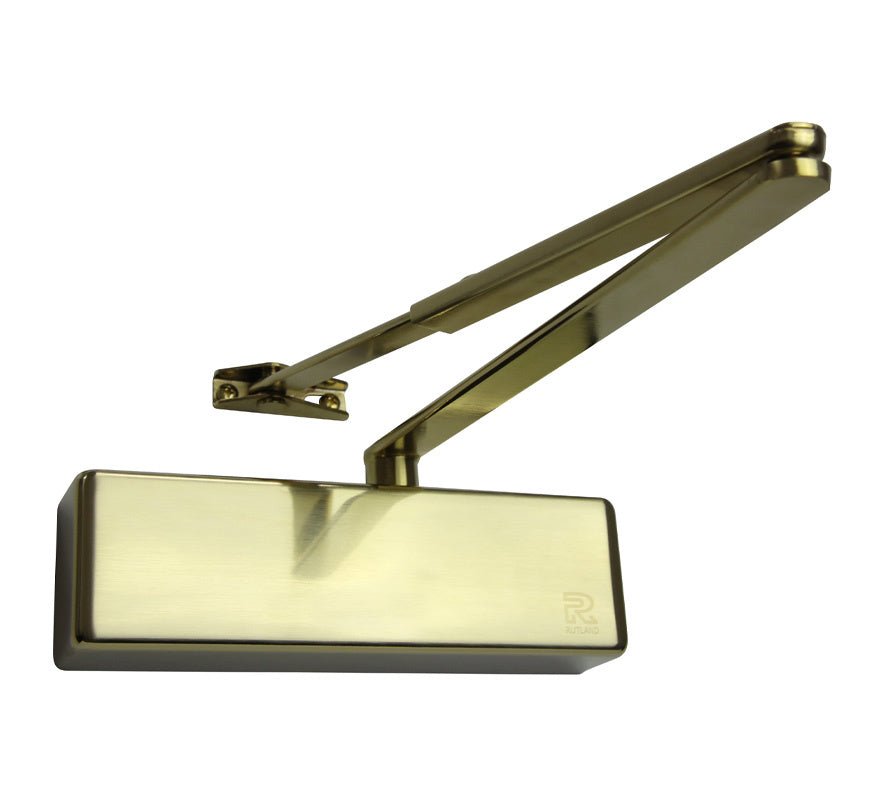

Rutland TS.3204 Power Size EN3/EN4 Overhead Door Closer - Satin Brass (TS.3204.SLFB.SBSB)

The Rutland TS.3204 is a Certifire-approved, surface-mounted scissor arm overhead door closer in a satin brass finish (TS.3204.SLFB.SBSB). It uses a rack-and-pinion mechanism, has been tested to over 500,000 closing cycles and is suited to mid-range contracts on almost all common door types, including fire doors from FD30 to FD120.

Key features

• Fixed power size EN3 or EN4, set by template
• Rack-and-pinion mechanism for reliable closing strength and long service life
• Third-party certified by Certifire (CF6018) and Secured by Design
• Fire tested in popular door cores including Falcon Strebord 44 and 54, Moralt and Vicaima
• CE and UKCA marked
• Easy-to-use template fitting instructions

Technical specifications

• Power size: EN3/EN4, adjustable by template
• Maximum door width: 1100 mm (pull side 300 to 1100 mm; push side 470 to 950 mm)
• Maximum door weight: <80 kg
• Opening angle: up to 180° pull side
• Fire rating: FD30 to FD120 timber doors
• Certification: Certifire CF6018, CE 1812, BS EN 1154, BS EN 1634-1
• Dimensions (including cover): W 250 x H 66 x D 43 mm
• Corrosion grade 3, recommended for internal use
• Hold-open: optional mechanical (not for fire doors)
