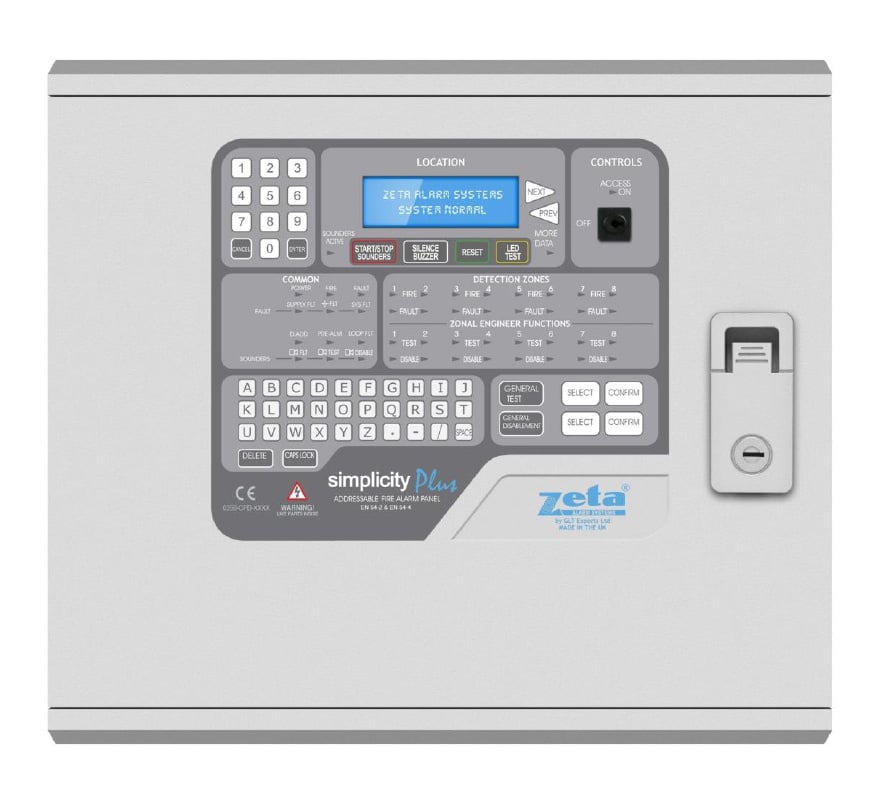

Zeta Simplicity Plus 64 1 Loop Addressable Fire Panel (126 Devices) (SP-126/M)

The Zeta Simplicity Plus SP-126/M is a 1 loop analogue addressable fire alarm panel with a capacity of 126 devices, housed in a metal enclosure. It is the ideal introduction to addressable fire alarm systems: designed for ease of use, it uses pre-programmed values so the installer simply configures the loop and, optionally, enters text labels on the built-in keypad.

The panel works with Zeta's loop-powered addressable devices. It can drive an RS232 desktop printer for real-time event logging and a serial repeater (SP-REP).

Key features

• Certified to EN 54-2 and EN 54-4
• User-definable zones; zonal or common alarm operation
• Options for I/O operation
• Alarm verification to help prevent false alarms
• User-selectable languages
• Changeover relay contacts for fault and fire conditions
• 2,048-event log (fire and fault)
• Zone or device disablement and one-man test mode
• Plug and play: no special tools or laptop needed for commissioning
• Fully integrated keypad; all associated devices loop powered

Technical specifications

• Model / part no.: SP-126/M (37-165)
• Supply voltage: 230 V AC ±10%
• System voltage: 24 V DC nominal (19-30 V DC)
• Loops: 1
• Device capacity: 126 devices
• Sounder output: addressable sounders only
• Fault and fire outputs: 28 V repeat outputs to drive relays
• Operating temperature: 0 to 50 °C
• Tick Mark certificate 13LHK1347-03; CPR 0905-CPR-0145
