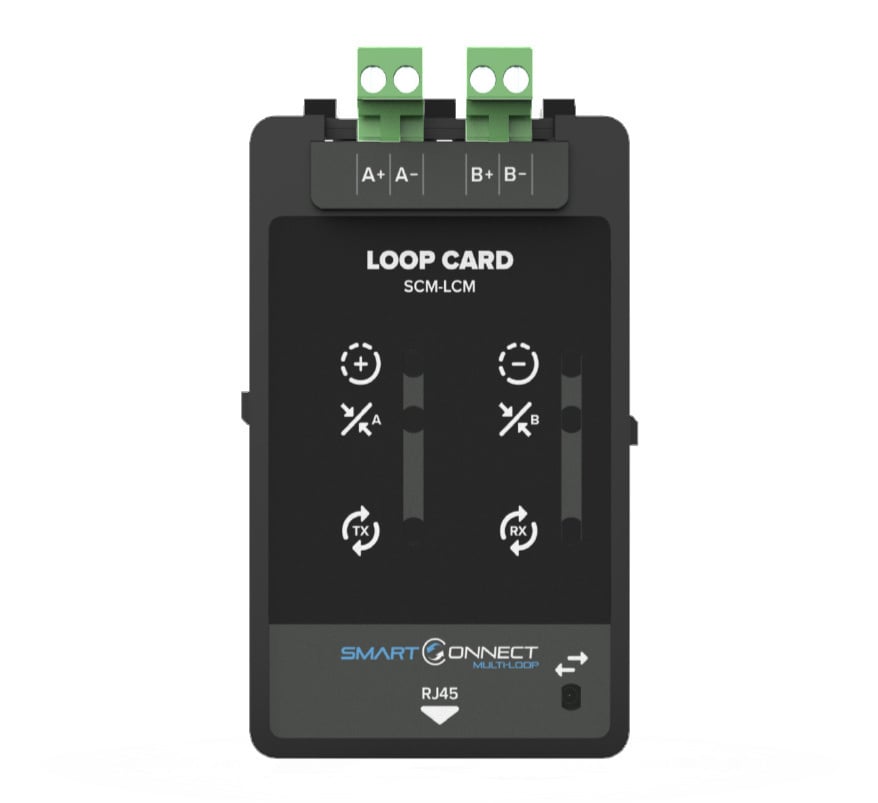

Zeta SmartConnect Multi-Loop Card Module (MKII Protocol) (SCM-LCM)

The Zeta SCM-LCM is a plug-in loop card module for Zeta SmartConnect multi-loop fire alarm panels (for example the SMART6 expansion port panel). It powers and handles communications for one loop of MKII protocol analogue addressable devices, continuously monitoring their status.

Up to 250 addresses can be connected to the loop. Devices can be addressed by 8-way DIP switch or soft-addressed with the MKII-TOOL handheld programmer, and the AUTO-LEARN facility lets the panel learn which devices are installed and helps locate loop wiring faults.

Key features

• Supports up to 250 addresses per loop
• 450 mA maximum loop load
• Heartbeat LED shows communication between module and motherboard
• Extensive front status indications
• Time-saving AUTO-LEARN facility
• Double address detection
• Designed to EN 54 requirements; LPCB approved

Technical specifications

• Model / part no.: SCM-LCM (37-391)
• Rated voltage: 30 V DC nominal
• Maximum loop current: 450 mA
• Maximum loop resistance: 50 Ω (25 Ω per core)
• Maximum SLC cable length: 2 km
• Maximum SLC capacitance: 500 nF
• Operating temperature: -5 to +40 °C
• Humidity: up to 93% non-condensing
• Size (H x W x D): 105 x 57 x 47 mm
• Weight: 0.15 kg
• Recommended cable: 0.8 to 2.5 mm²
• Note: maximum load and maximum cable resistance cannot both be reached at the same time
