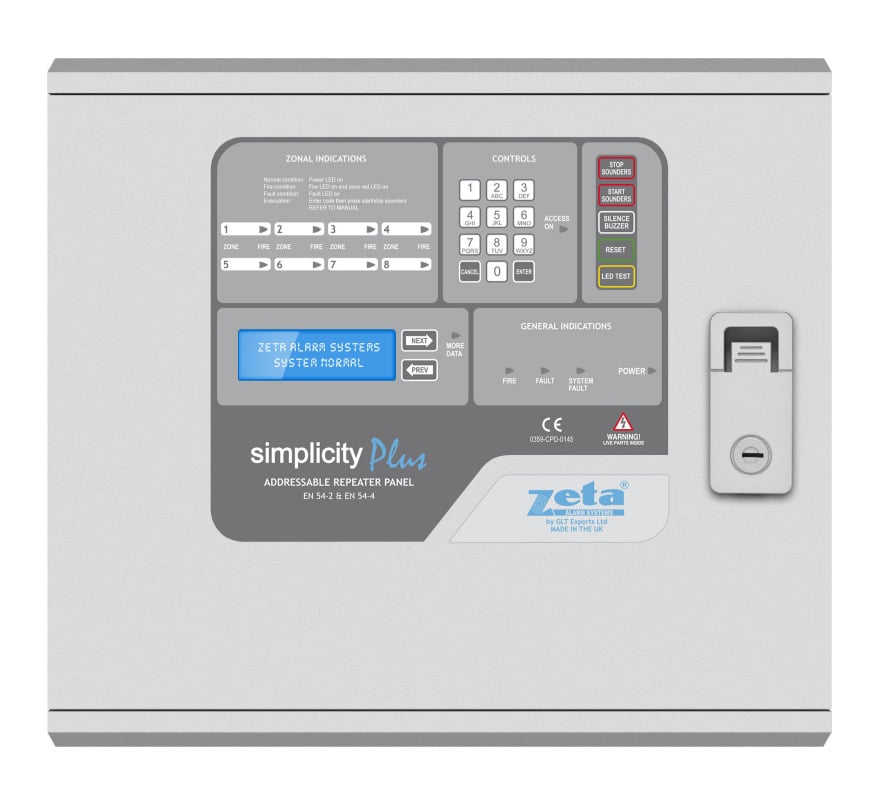

The Zeta SP-REP is the fully functional serial repeater panel for the Zeta Simplicity Plus analogue addressable fire alarm panels (SP-64, SP-126 and SP-252). It gives a second point of indication and control away from the main panel.
It is powered at 24 V DC and has a slim enclosure for discreet wall mounting.
Key features
- Full-function repeater for Simplicity Plus panels
- Serial connection to the main panel
- 24 V DC powered
- Slim 75 mm deep enclosure
Technical specifications
- Model / part no.: SP-REP (37-179)
- Supply voltage: 24 V DC
- Compatible with: Simplicity Plus SP-64, SP-126 and SP-252 panels
- Enclosure size: 375 (W) x 335 (H) x 75 (D) mm
