Zeta SmartConnect Multi-Loop Addressable Fire Panel (10 Module Ports) (SMART10/64)

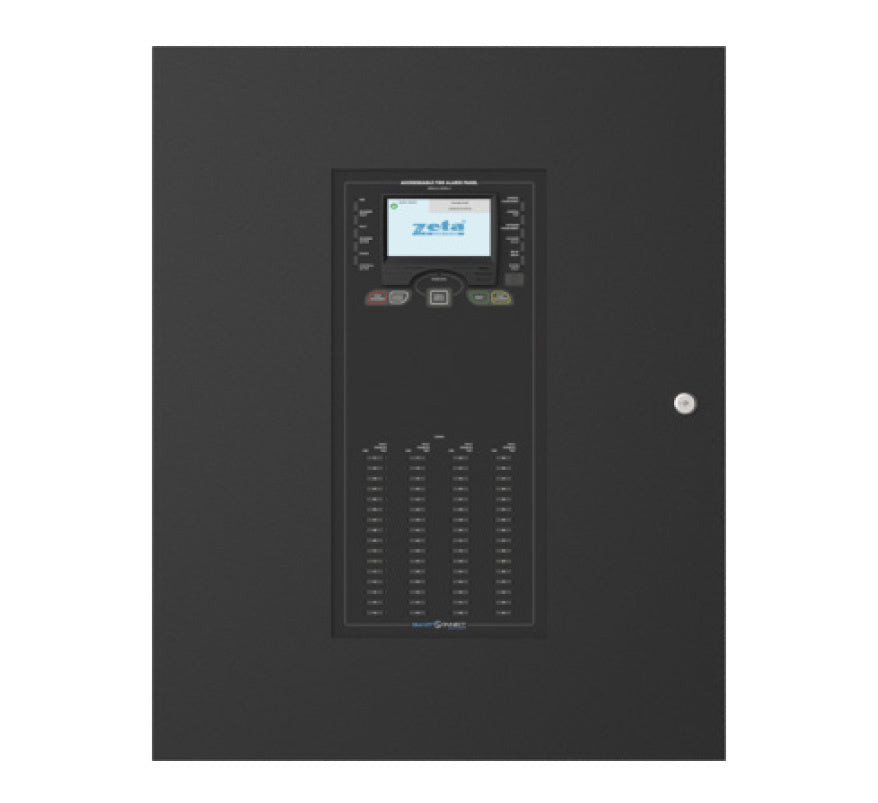

The Zeta SmartConnect Multi-loop SMART10/64 is an analogue addressable fire alarm control panel with 10 module expansion ports and zonal LED indication, for Zeta Fyreye MKII addressable devices. It is built from DIN-mounted plug-in modules, so the panel can be configured with the loop cards, sounder circuits, relays, inputs and network cards a project needs, and it can run standalone or on a peer-to-peer network. The touch screen interface is designed to keep end-user training to a minimum. This version includes a 64 zone LED display.

Key features

• Capacity for up to 10 intelligent modules, including up to 6 loop card modules
• Modular construction: specify the panel with just the modules required
• 4.3" colour touch screen display
• 250 Fyreye MKII devices per loop; 254 addressable programmable zones
• Up to 64 panel peer-to-peer network
• Full cause and effect programming from the front panel or Smart Configurator PC software
• 8032 event log entries
• Day/night (building occupied/unoccupied) programming, positive alarm sequence and alarm verification
• Can be configured as a fully functioning conventional panel using zone monitor modules
• Full system redundancy; 400W power supply
• LPCB certified (C330w/03)

Technical specifications

• Standards: EN54-2 and EN54-4
• Mains supply: 230V AC or 120V AC (+10% / -15%), 47-63Hz
• Power supply rating: 30V DC, 400W
• Battery voltage: 24V DC
• Detection loop (SCM-LCM): 250 addresses, 450mA max loop current, 500nF max capacitance
• Alarm circuits (SCM-ACM): 2 x 500mA max, Class B
• Termination board relays: alarm and fault (C/NO/NC), rated 125V AC @ 0.5A / 30V DC @ 1A
• Network: 64 nodes max, 1km max between nodes
• Display: 4.3" resistive touch screen, 480 x 272 pixels
• Operating temperature: -5°C to 49°C; relative humidity 93% non-condensing
• Battery charge current: 2.2A max
• Battery capacity: 2 x 38Ah 12V sealed lead acid (max)
• Enclosure: 665 x 535 x 200mm (H x W x D); 38 cable entries
• Weight: 15kg

Available modules include the SCM-LCM loop card, SCM-ACM alarm circuit, SCM-RM multi relay, SCM-NM RS485 network, SCM-MIM multi input, SCM-ZMM zone monitor, SCM-PM RS232 printer (printer versions only) and SCM-LAN TCP/IP modules.
