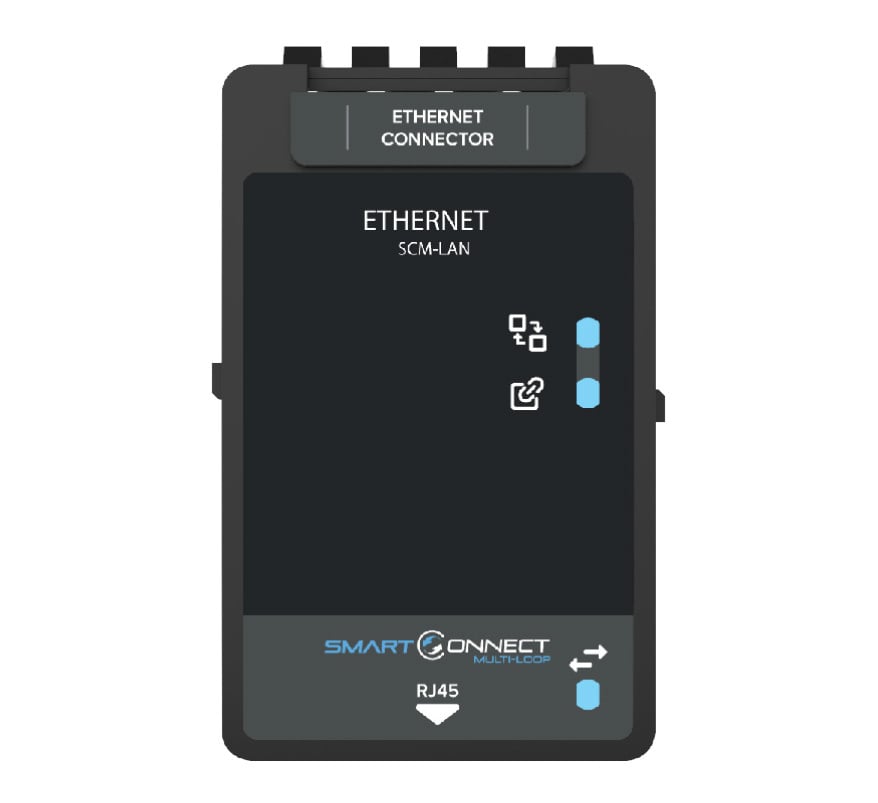

The Zeta SCM-LAN is a TCP/IP module for the Zeta SmartConnect Multi-loop fire alarm panel. It is DIN mounted inside the panel and powered and connected via RJ45. It gives the panel a TCP/IP connection so events can be reported to an external monitoring system such as Zeta Remote or Datalog, allowing remote monitoring and control from a desktop PC or smartphone via the cloud. A built-in Modbus output lets a Modbus master read panel status.
Key features
- TCP/IP output via RJ45
- Zeta Remote monitoring and remote control via the cloud
- Responsive web interface
- Modbus output (0x04 command) for general, module, zone, loop and local I/O status
- Designed to EN54 requirements
- Extensive front unit status indications
Technical specifications
- Quiescent and alarm current: 46.5mA
- Connection: RJ45, CAT5 minimum
- Operating temperature: -5°C to 40°C; humidity 93% non-condensing
- Size: 103 x 97 x 46mm (H x W x D); weight 0.2kg
